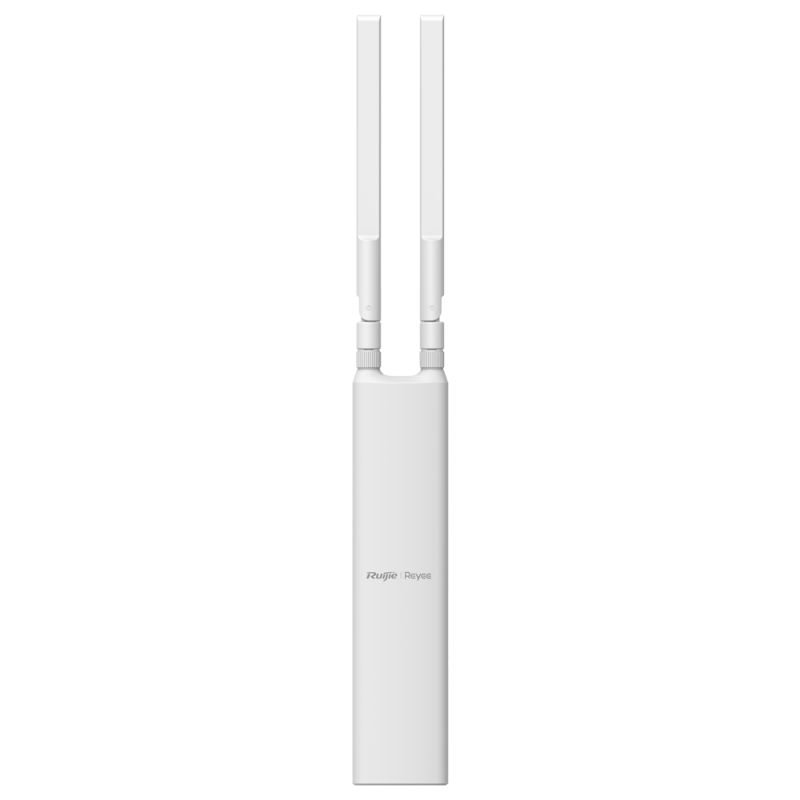

Ruijie RG-RAP52-OD Wi-Fi 5 Dual-Band Outdoor Access Point

Original price was: KSh 20,000.00.Current price is: KSh 19,000.00. excl. VAT

AC1300 Wave 2 Outdoor Mesh Mini AP for Villas and Retail Businesses
Wall or Pole Mounting to Fit in Any Location
IP65 Weatherproof Rating, Delivering Consistent Protection and Signal Stability
Detachable Antennas for Customized Coverage Where Needed
Tailored for Retail Businesses with Reyee Mesh, Standalone Portal, and AI Roaming Features

Visit our store and enjoy:

Genuine, brand new, sealed stock
Price-match against authorized dealers
Installation & configuration services available
Expert advice on compatibility with your network

SKU: HB43105 Category: Ruijie Reyee Access Points Brand: Ruijie Reyee

Description
Reviews (0)

Ruijie RG-RAP52-OD Wi-Fi 5 Dual-Band Outdoor Access Point

The Ruijie RG-RAP52-OD is an enterprise-grade, fully outdoor-rated 802.11ac Wave 2 access point designed for challenging environmental deployments. As a member of Ruijie’s “Outdoor Durability” series, this AP balances robust physical construction with capable wireless performance for demanding outdoor networking scenarios.

Hardware Specifications
Model	RG-RAP52-OD
Wi-Fi Radio
6 GHz Wi-Fi	No
5 GHz Wi-Fi	Wi-Fi 4 (IEEE 802.11a/n)Wi-Fi 5 (IEEE 802.11ac)
2.4 GHz Wi-Fi	Wi-Fi 4 (IEEE 802.11b/g/n)
Operating band	IEEE 802.11b/g/n, 2.400 GHz to 2.4835 GHzIEEE 802.11a/n/ac, 5.150 GHz to 5.350 GHz, 5.470 GHz to 5.725 GHz, 5.725 GHz to 5.850 GHz Note: Available bands vary with countries and regions. To use the preceding frequency bands, ensure that your country or region supports these frequency bands.
Radio design	Dual-radio4 spatial streams ● 2.4 GHz: 2 x 2, MIMO ● 5 GHz: 2 x 2, MIMO
FEM	2.4 GHz: 2 x eFEM5 GHz: 2 x eFEM
6 GHz channel width	No
5 GHz channel width	Auto/20/40/80 MHz
2.4 GHz channel width	Auto/20/40 MHz
Maximum wireless data rate	1266 Mbps
6 GHz wireless data rate	No
5 GHz wireless data rate	866 Mbps
2.4 GHz wireless data rate	400 Mbps
Maximum transmit power	Frequency bands and maximum Effective Isotropic RadiatedPower (EIRP):

Hardware Specifications
Model	RG-RAP52-OD
Dimensions of the DC connector	No
PoE In standard	● IEEE 802.3af (PoE)● IEEE 802.3at (PoE+)
Passive PoE power supply	Yes, 24 V passive PoE injector
PoE budget	No
Maximum power consumption	13.5 W
Environment and Reliability
Operating temperature	–30°C to +65°C (–22°F to +149°F)
Storage temperature	–40°C to +75°C (–40°F to +167°F)
Operating humidity	10% RH to 95% RH (non-condensing)
Storage humidity	10% RH to 95% RH (non-condensing)
Mounting options	Wall/Pole
IP rating	IP65
Surge protection	Ethernet port: ±4 kV for common mode
MTBF	400,000 hours
Certification and Regulatory Compliance
RoHS	Yes
Safety compliance	EN 62368-1
EMC	EN 55032EN 55035 EN 61000-3-3 EN 61000-3-2 EN 301489-1 EN 301489-3 EN 301489-17
RF	EN 300 328EN 301 893 EN 300 440
Certification	CE, CB

Software Specifications
Model	RG-RAP52-OD
Basic Configurations
AP mode	Yes
Routing mode	Yes
Internet access mode	Static IP address Static IPv6 address Dynamic IP address Dynamic IPv6 addressPPPoE
Interface
IPTV transparent transmission	No
Ethernet Interface
PPPoE clients	Yes
Ethernet Switching
IEEE 802.1Q VLAN	Yes
WLAN
Maximum number of associated wireless clients	64 (2.4 GHz)110 (5 GHz) 110 (2.4 GHz and 5 GHz enabled)
Recommended number of associated wireless clients	16 (2.4 GHz)64 (5 GHz) 80 (2.4 GHz and 5 GHz enabled)
Maximum number of SSIDs	8
Radio-based client limiting	Yes
Layer 2 isolation	Yes
OFDMA	No
WMM	Yes
DFS	Yes
MLO	No
4K-QAM	No

Package Contents
Model	RG-RAP52-OD
Package Contents
Package Contents	1 x AP2 x Antennas 2 x Band clamps 1 x Mounting bracket 2 x Cross pan head screws (ST3.5 x 25 mm) 2 x Plastic expansion anchors (φ9 x 25.4 mm) 1 x User Manual 1 x Warranty Card
Accessories
Power adapter	No
