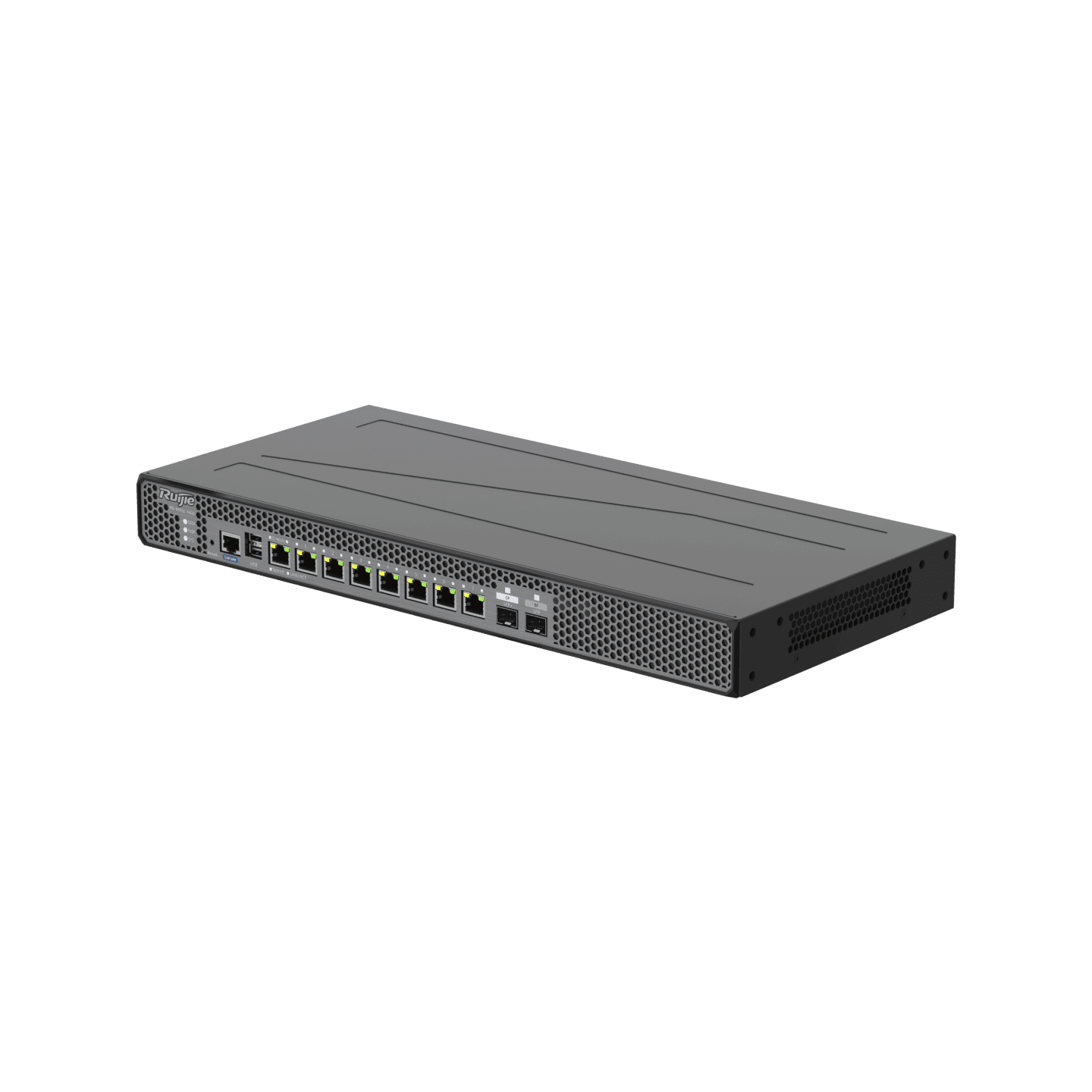

Ruijie Reyee RG-WALL 1600-Z3200-S, Next-Generation Z Series Firewall
The Ruijie Reyee RG-WALL 1600-Z3200-S Z Series Next-Gen Firewall Appliance addresses the complex information security challenges that have emerged alongside the rise of new hot spots such as social networking, cloud computing, and big data. As the internet enters an unprecedented era of prosperity, the traditional security construction model faces huge challenges.
Drawing on years of technological expertise and in line with the development trend of next-generation firewalls, Ruijie has developed the RG-WALL 1600-Z3200-S cloud managed firewall to cater to the ever-changing demands of today’s market. This firewall can be installed on a standard 19-inch rack and features high performance and flexible expansion.
Features
- Includes four-in-one licence which provides one-year upgrade services for intrusion prevention (IPS), antivirus (AV), app identification (APP), and URL signature libraries.
- Port scan + traffic learning, intelligent policy recommendation, simple deployment.
- Designed to cope with heavy traffic.
- Policy execution after simulation, policy optimisation anytime.
- One-click fault locating in the intelligent diagnostic centre.
- Ruijie Cloud management allows for remote management, saving you effort and costs.
- Scalable performance and flexible expansion via licence (sold separately).

Specification
| System Performance and Capacity | RG-WALL 1600-Z3200-S |
| Firewall throughput of IPv4 packets (1518-byte UDP packets)4 | 10 Gbps |
| Firewall throughput (packets per second) | 1.8 Mpps |
| Concurrent sessions (TCP) | 500000 |
| New sessions/second (TCP) | 50000 |
| Firewall policies | 3000 |
| SSL VPN throughput | 384 Mbps |
| Concurrent SSL VPN users (recommended maximum, tunnel mode) | 500 |
| Application control throughput (HTTP 64K)2 | 3 Gbps |
| IPsec VPN throughput (512-byte) | 1.3Gbps |
Hardware Specification
| Hardware Specificatio | RG-WALL 1600-Z3200-S |
| Dimensions and Weight | |
| Product dimensions (W x D x H) | 440 mm x 200 mm x 43.6 mm (17.32 in. x 7.87 in. x 1.72 in.; without rubber pads) |
| Shipping dimensions (W x D x H) | 520 mm x 345 mm x 106 mm (20.47 in. x 13.58 in. x 4.17 in.) |
| Product weight | 2.9 kg |
| Shipping weight | 4.0 kg |
| Form factor | 1 U rack |

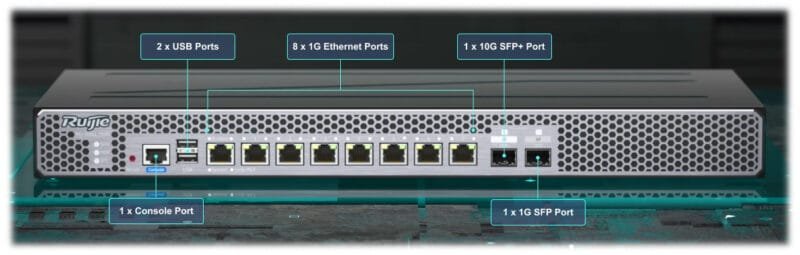

| Port Specifications | |
| Fixed 1G electrical port | 8 × 10/100/1000 Base-T RJ-45 Ethernet electrical ports with auto-negotiation |
| Fixed 1G optical port | 1 × 1000BASE-SX/LX/ZX Ethernet optical port |
| Fixed 10G optical port | 1 × 10GBASE-SR/LR/ZR Ethernet optical port (with 10G/1G auto-negotiation) |
| Fixed management port | 1 × 10/100/1000 Base-T RJ-45 Ethernet port with auto-negotiation (reusing port Ge 0/0) |
| Console port | 1 x RJ-45 console port (serial console port) |
| USB port | 2 x USB 2.0 ports |
| Storage Specifications | |
| Hard disk | No hard disk for factory delivery. A 1 TB SATA hard drive can be added. |
| Hardware Specificatio | RG-WALL 1600-Z3200-S |
| Power Supply and Consumption | |
| Power supply | Built-in single power module: Rated input voltage: 100–240 V; 50–60 Hz Rated input current: 0.65 A |
| Max. Power Consumption | < 25 W |
| Environment and Reliability | |
| Operating temperature | 0°C to 45°C (32°F to 113°F) |
| Storage temperature | –40°C to +70°C (–40°F to +158°F) |
| Operating humidity | 5% RH to 95% RH (non-condensing) |
| Storage humidity | 5% RH to 95% RH (non-condensing) |
| Noise level | 43.7 dB |
| Operating altitude | 0–5000 m (0–16404 ft.) |
| Compliance | EMC SZEM2302000974ATVLVD SZES2302001034AT |
Software Specification
| Software Specifications | RG-WALL 1600-Z3200-S |
| Network | |
| Physical interface | Configuring interfaces as LAN/WAN interfaces; three IP address assignment modes for WAN interfaces: PPPoE, DHCP, and static IP modesConfiguring routing or transparent mode for interfaces |
| Sub-interface | Configuring sub-interfaces and VLAN IDs |
| Bridge interface | Configuring interfaces in transparent mode as bridge interfaces |
| Static route | Configuring IPv4 static routes |
| PBR | Configuring policy-based routing (PBR) |
| Software Specifications | RG-WALL 1600-Z3200-S |
| Routing table | Overall routing information of a device |
| DHCP server | DHCP server; configuring DHCP address pools |
| Address management list | Assigned DHCP address list |
| DNS server | Configuring DNS addresses for devices |
Object | |
| Address/Address group | Configuring address objects in IP address/range format |
| Zone | Configuring security zones |
| Application and application group | Configuring application types in application/application group mode |
| Service/Service group | Configuring service objects; common default port services supported |
| Time plan | Configuring time objects; one-off time plans and cyclic time plans supported |
|
Virus protection template | Configuring content object templates; predefined virus protection templates supported |
| Configuring virus protection templates Configuring quick scan or deep scan; configuring templates based on protocols and directions; setting excluded viruses | |
| Intrusion prevention template | Configuring content object templates; predefined intrusion prevention templates supported |
| Configuring intrusion prevention templates Configuring rule filters based on objects, severity, protocols, threat types; setting excluded rules | |
| SSL proxy certificate | Adding, importing, deleting, viewing, and downloading SSL proxy certificates Configuring a global SSL proxy certificate |
| Server certificate | Importing, deleting, viewing, and downloading server certificates |
| Security rule base | Viewing default security rules in the IPS library |
| Policy | |
| Simulation policy | Simulating policy execution in the simulation space to check whether uncertain security policies can achieve expected effects |
| Policy configuration wizard | Security policy configuration wizard for conducting port scan, performing configurations, testing configurations, and other steps to generate security policies |
Software Specifications | RG-WALL 1600-Z3200-S |
| Policy optimization | Sorting out configured security policies and analyzing policies to identify redundant, expired, and conflicting policies |
| Policy lifecycle | Full lifecycle display of security policies, including detailed records of policy changes |
| Port scan | Port scan of configured IP ranges for all ports or selected ports; policy creation prompt for scan results |
| DoS/DDoS attack defense | Different DDoS attack defense policies in security defense |
| ARP attack defense | Anti-ARP spoofing, ARP flooding suppression, and other functions in security defense |
| Local defense | Configuring local defense policies in security defense |
| Blocklist/Allowlist | Configuring global blocklists and allowlists |
| SSL proxy policy | Configuring SSL proxy policies; customizing policies based on parameters including objects, contents, and zones; policy list |
| SSL proxy template | Configuring SSL proxy templates; setting the template type to protecting client or server |
| Allowlist | Configuring domain name allowlists and application allowlists |
System | |
| Administrator | Creating device administrators, including account names, passwords, and description |
| Administrator role | Setting multiple administrator roles and assigning different permissions |
| Clock configuration | Configuring system time; NTP service configuration supported |
| Service parameter | Configuring service ports for a device, including web (HTTPS), SSH, and other ports |
| Authorization management | Managing licenses of devices, including license import and activation |
| Device information | Viewing device information, including the product name, SN, and MAC address, version information, running time, and license information |
| System restart | Restarting the system on the web UI |
| System upgrade | Upgrading the system |
| Patch installation | Downloading and installing patches for upgrade |
| Configuration backup | Import and export of device configurations |
| Factory settings restoration | Restoring factory settings on the web UI |
| Signature library upgrade | Automatic signature library upgrades based on the latest versions on the cloud |
| Cloud management platform | Enabling or disabling unified management on the cloud management platform |
Software Specifications | RG-WALL 1600-Z3200-S |
| Device binding | Adding devices to the cloud management platform by scanning a QR code |
| Ping | Ping for troubleshooting |
| Tracert | Tracert for troubleshooting |
| Packet obtaining tool | Tool for obtaining packets and exporting results |
| One-click collection | Collecting fault information with one click |
| Device health | Device health diagnosis |
| Service diagnosis | Service continuity diagnosis |
| Breakdown record | Breakdown information records |
| Device log retention | Device log retention |
| External APIs | RESTful APIs for third-party interconnection |
