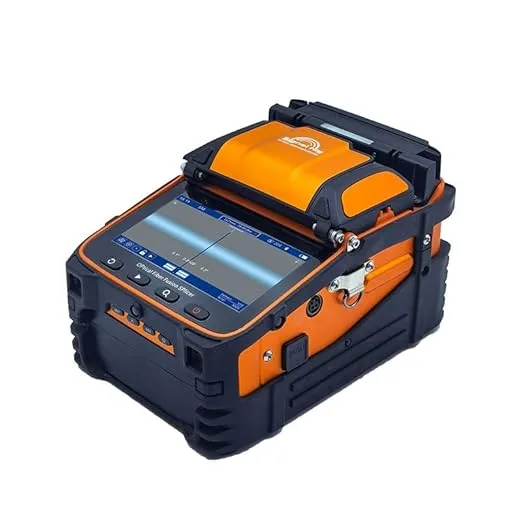

Signal Fire A1-9 Fiber Fusion Splicing Machine
Original price was: KSh 127,000.00.KSh 125,000.00Current price is: KSh 125,000.00. excl. VAT
• 1 x Fusion Splicer
• 1 x Carrying Case
• 1 x Spare Electrode
• 1 x SO-9 Fibre Cleaver
• Miller Stripper
• Plier Stripper
• Brush
• Power Adapter
• Alcohol Bottle
• Hexagon ( Allan Keys)
• Strap for carrying case
• Hand strap for fusion splicer machine
Signal Fire A1-9 Fiber Fusion Splicing Machine
Signal Fire A1-9 Fiber Optic Splicer AI9 Fusion Machine 6 Motors Optical Fiber Welder Splicing Machine Built in OPM VFL Signal Fire AI-9. The machine uses the latest core alignment technology with auto focus and six motors. It is a new generation of fiber fusion splicer.
It is fully qualified with trunk construction of medium and short distance. FTTH project, security monitoring and other fiber cable splicing projects. The machine uses industrial quad-core CPU, fast response.
It is currently one of the fastest fiber splicing machine in the market. With 5-inch 800X480 high-resolution screen. The operation is simple and intuitively; and up to 300 times focus magnifications. Making it is very easy to observe the fiber with naked eyes.
6seconds speed core alignment splicing, 15 seconds heating, the working efficiency increased by 50% compared to ordinary splicing machines. Under the conditions of rigorous testing, the performance is still outstanding. Toolbox is small, exquisite, durable, and with unique bench design.
The design of operating platform reflects the humanistic care; unique lighting design, it is convenient for night construction or repair. Screen brightness is adjustable and it is convenient for outdoor sunshine environment operation. With the combination of advanced technology and design. The new generation of optical fiber fusion splicer will bring you a reliable and comfortable user experience.
Features
- Signal fire AI-9 fusion splicer is one of the most popular splicing machine in the market because of its excellent performance and stable quality.
- The Signal Fire AI-9 FTTH splicing machine features an innovative design, incorporating a 10mW laser source and an optical power meter. It measures a range of -70~+3dBm and supports calibrated wavelengths of 850, 1300, 1310, 1490, 1550, and 1625 nm.
- 5 seconds for splicing and 15 seconds for heating. Multi-functional fiber holders to increase your work efficiency
- AI-9 ARC fiber fusion splicer has 6 motors with auto focus, which supports for core to core alignment.
- 5.5 Inch TFT LCD display, 3000 times electrodes, 7800mAh capacity battery, 4 in 1 fiber stripper and high quality stool make work more pleasant.
Signal Fire A1-9 Specifications:
| Fiber Alignment | Core alignment, cladding alignment |
| Motor Number | 6 motors |
| Splicing Time | 5S |
| Heating Time | 15S, can be customized according to the external environment |
| Applicable Fibers | Single mode fiber (SMF/G.652, BIF/G.657); Suitable for single mode, multi-mode, bare fiber, tail fiber, drop cable, jumper, invisible fiber fusion |
| Cladding Diameter | 80~150um |
| Fiber Holders | 3-in-1 fiber holder, 250um/900um/2mm/3mm/2*3mm flat drop cable |
| Splice Loss | 0.02dB (SM), 0.01dB (MM), 0.04dB (DS), 0.04dB (NZDS) |
| Splice Mode | Automatic focus core alignment, conventional/high precision splicing |
| Splice Method | Automatic, semi-automatic |
| Optical Power Meter | Wavelength: 850/1300/1310/1490/1550/1625/980/1270/1577/1650nm, Measuring Range: -50~+26dBm, Resolution: <0.3dB (-50dbm ~+3dBm range) |
| VFL | 15mW, CW/2Hz |
| Battery Capacity | 7800mAh high capacity lithium battery, charging time ≤3.5 hours, continuous splicing and heating about 260 cores |
| Magnification | 300 for X or Y view, 150 for X or Y view |
| Fiber Diameter | Cladding diameter: 80~150um, Coating diameter: 100~1000um |
| Fiber Cleave Length | Coating less than 250um: 8~16mm; Coating of 250~1000um: 16mm |
| Protective Sleeve | 25/40/50/60mm |
| Tension Test | 2N |
Screen |
5 inch TFT color display |
| Boot Time | 1s, boot can enter the working mode |
| Data Storage | Unlimited, machine storage is 1,000 groups and excess datas can be stored in the server, which can export data. |
| Wirelss Communication | Based on Bluetooth 4.2 protocol standard, working band is 2.4GHz, maximum transmission distance is 60m. |
| Software Update | Mobile phone APP internet update, enable Bluetooth synchronization upgrade machine software |
| Management Function | The equipment owner can be bound as the highest authority, and can remotely view the splicing records, splicing time, loss, etc. Through the mobile phone APP. You can set the number of splicing times or the working time of the equipment. The manager can effectively manage a single or multiple equipment. |
| Return Loss | 60dB |
| Protection | Waterproof, dustproof and shock-resistant |
| Power Supply | Input: 100～240VAC 50/60Hz, output 13.5VDC, 4.8A, the current power mode can be identified, real-time monitoring of current battery level |
| Operation Conditions | -15～+50℃, 0～95%RH (humidity), 0～5,000m (altitude), max. Wind speed: ≤15m/s |
