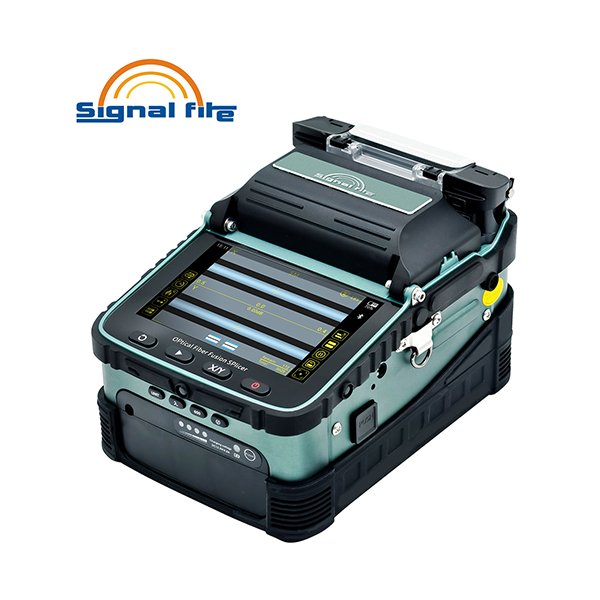

Signal Fire AI-6A+ Optical Fiber Fusion Splicer
Original price was: KSh 92,000.00.KSh 90,000.00Current price is: KSh 90,000.00. excl. VAT
- Automatic heating
- Core alignment
- 5″ TFT color display
- Protective case (IP52)
- Phone charging capability
- LED flashlight
- 5200 mAh battery
Visit our store and enjoy:
- Genuine, brand new, sealed stock
- Price-match against authorized dealers
- Installation & configuration services available
- Expert advice on compatibility with your network
Signal Fire AI-6A+ Optical Fiber Fusion Splicer
Signal Fire AI-6A+ optical fiber fusion splicer is an economical six-motor machine, mainly suitable for security monitoring, FTTH entry, and short-distance outdoor fiber fusion splicing. The machine adopts an industrial CPU, which runs quickly; Adopting a 5-inch high-resolution color screen with a simple and intuitive interface, magnified 320 times, making it easy to observe the fiber core with the naked eye. 8 seconds high-speed splicing, 18 seconds heating
The machine features OPM and VFL functions, which boost its efficiency compared to ordinary splicing machines. Its 5200mAh high-capacity lithium battery powers splicing and heating for about 160 cells. Users can fold or unfold the cooling rack as needed. The machine supports 10 major global languages, allowing users to select their preferred language and upgrade the software system remotely. AI-6A+ will surely exceed your expectations!
Specifications:
| Fiber Alignment | Core/cladding |
| Motor Number | 6 motors (accurate of fiber alignment: 0.3um) |
| Splicing Time | 8S |
| Heating Time | 18S, can be customized according to the external environment |
| Applicable Fibers | Single-mode fiber (SMF/G.652), BIF/G.657); suitable for single mode, multi-mode, bare fiber, tail fiber, drop cable, jumper, invisible fiber fusion |
| Cladding Diameter | 80~150um |
| Splicing Loss | 0.02dB (SM), 0.01dB (MM), 0.04dB (DS), 0.04dB (NZDS) |
| Splicing Mode | Automatic focusing core alignment, conventional / high precision welding |
| Splicing Method | Automatic, semi-automatic |
| Fiber Holder | 3-in-1 fiber holder, no need to change, suitable for single/muti-mode, multi-core cable, 250um/900um/2mm/3mm/2*3mm flat drop cable |
| VFL | The machine comes with: power: 15mW, 2Hz flashing and steady on mode |
| OPM | Wavelength: 850nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm, 980nm, 1270nm, 1577nm, 1650nm/Measurement range: -50+26dbm Absolute error: <0.3dB (-50dbm ~+3dBm range) |
| Machine System Languages | 10 languages available (Chinese, English, French, Russian, Italian, Portuguese, Polish, Spanish, Thai, Arabic) |
| Inbuilt Battery | 5200mAh large capacity lithium battery, charging time ≤3 hours, continuous splicing and heating about 160 times |
| Magnification | 320 for X or Y view, 200 for X or Y view |
| Fiber Diameter | Cladding diameter: 80~150um, Coating diameter: 100~1000um |
Fiber Cleave Length |
Coating less than 250um diameter: 8~16mm;Coating between 250~1000um: 16mm |
| Heat Shrink Tube | 60mm, 50mm, 40mm, 25mm |
| Tension Test | Standard 2N |
| Screen | 5 inch TFT color display |
| Boot Time | 1s, boot can enter the working mode |
| Data Storage | Unlimited, machine storage: 1,000 groups, the excess datas can be stored in the server, which can export data. |
| Wireless Communication | Based on blue-tooth 4.2 protocol standard, the working band is 2.4GHz, the maximum transmission range is 60m |
| Software Upgrade | Mobile phone APP internet update, enable Bluetooth synchronization upgrade machine software |
| Management Function | The equipment owner can be bound as the highest authority, and can remotely view the welding records, welding time, loss, etc. Through the mobile phone APP. The number of welding times or working time of the equipment can be set. The manager can effectively manage a single or multiple equipment. |
| Return Loss | Better than 60dB |
| Product Protection | Waterproof, dustproof and fall proof |
| Power Supply | Input: AC 100～240V 50/60Hz, output DC 13.5V/4.8A, the current power mode can be identified, real-time monitoring of current battery level |
| Operation Conditions | -15～+50℃, 0～95%RH (humidity), 0～5000m (altitude), max. Wind speed: ≤15m/s |
