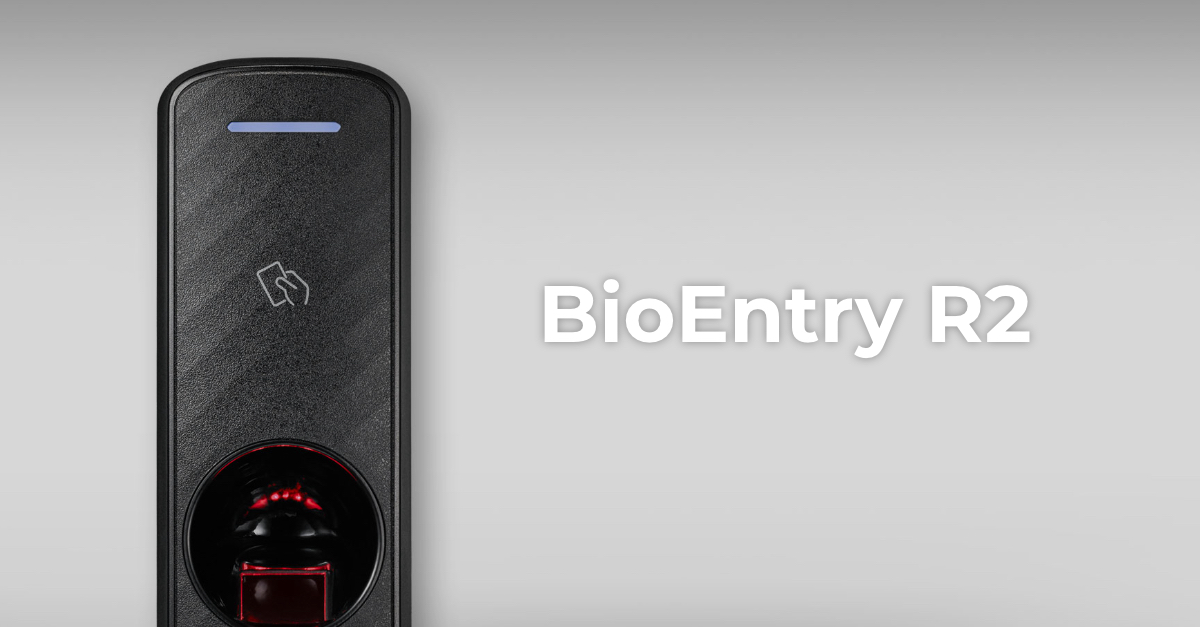

Suprema BioEntry R2 Compact Fingerprint Reader BER2-OD Specifications and details

Suprema BioEntry R2 is a Compact RFID card & Fingerprint Reader exclusively designed for centralized access control systems. Packed in a slim, mullion-type design, BioEntry R2 provides high-definition fingerprint image capture,

Credential
Biometric:Fingerprint
RF Option:BER2-OD: 125kHz EM & 13.56MHz MIFARE, MIFARE Plus, DESFire/EV1, FeliCa, NFC
RF read range*:MIFARE/DESFire/EM/iCLASS: 50 mm, Felica: 30 mm
* RF read range will vary depending on the installation environment.
Hardware
LED:Multi-color
Sound:Multi-tone Buzzer
Operating temperature:-20°C ~ 50°C
Operating humidity:0% ~ 80%, non-condensing
Dimension (W x H x D):50 mm x 164 mm x 37.5 mm
Weight:Device: 158 g
Bracket: 39 g (Including washer and bolt)
Certificates:CE, FCC, KC, RoHS, REACH, WEEE
Interface
RS-485:1ch Slave
Tamper:Supported

Specifications

Features

1. Cutting-Edge Biometrics: The BioEntry R2 leverages cutting-edge fingerprint recognition technology to provide a secure and convenient access control solution. It ensures that only authorized individuals gain access, enhancing security and reducing the risk of unauthorized entries.
2. Compact and Discreet: The compact design of the BioEntry R2 makes it unobtrusive and easy to integrate into different environments. It’s particularly suitable for settings where aesthetics and space constraints are important considerations.
3. Dual Fingerprint Recognition: This reader supports dual fingerprint recognition, ensuring a higher level of security by requiring the authentication of two fingerprints for access. It’s a valuable feature for environments with strict security requirements.
4. Versatile Access Control: The BioEntry R2 is a versatile solution that can be applied to various access control scenarios, including door access, time and attendance, and more. Its adaptability makes it a valuable asset for a wide range of applications.

See Datasheet.
