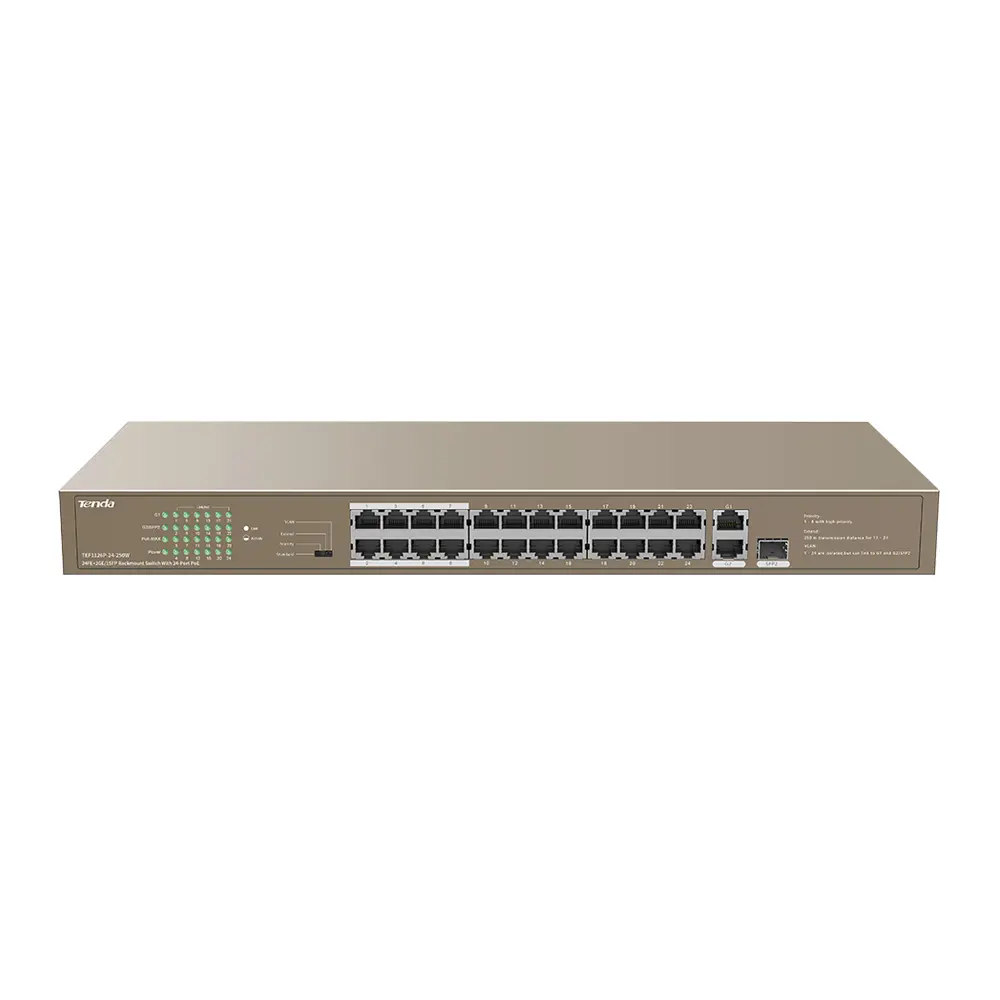

Tenda TEF1126P-24-250W 24-Port PoE Switch
Tenda TEF1126P-24-250W is a unmanaged PoE switch independently designed by Tenda. Compliant with IEEE802.3af and IEEE 802.3at standards, it can identify PoE-powered devices intelligently. With a maximum PoE power output of 230 W, and 30 W for a single port, it can supply power when transmitting data with APs, IP cameras, and IP phones.
The switch supports 4 working modes, including standard, priority, extend and VLAN modes, is an ideal choice for SMBs, hotels, schools, factories with video surveillance and wireless networking requirements.
GE and SFP Uplink Ports Flexible Networking With Less Breakdown
It provides 24*FE+2*GE/1SFP. The 1-24 ports support AF/AT standard PoE power supply mode, which can intelligently identify the power receiving equipment. The Gigabit uplink port can be used for short-distance networking.

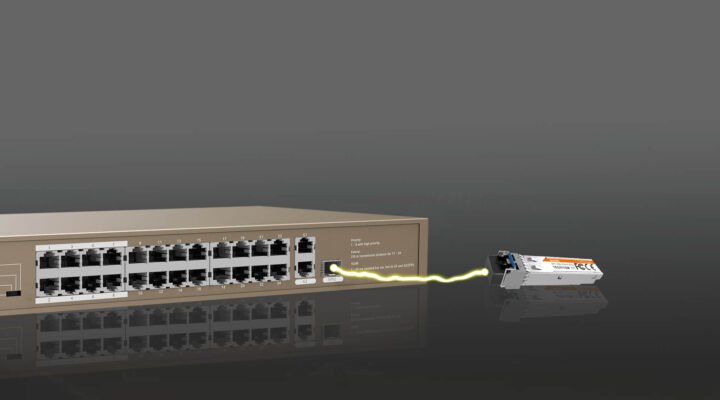

With one 1000 Mbps combo SFP slot, the switch can meet the current demand for uplink bandwidth of Gigabit WLAN and HD digital surveillance. Working with Tenda optical fiber module TEG311SM,the switch supports a maximum transmission distance up to 20km.

4M Large Buffer Guarantees The Surveillance Transmission Stable And Smooth
The product has 4M buffer, which is twice larger than the similar. The maximum output of a single port is 30W, and the whole device is 250W. When used alone, it can provide data transmission and power for 24 PoE IP cameras, APs, etc. Extraordinary quality, favored by engineering.
6KV Excellent Lightning Protection
The switch offers various safety and protection types, including 6 KV lightning protection, PSE short-circuit protection, PoE overload protection, surge current protection etc, and these greatly protect the switch from being damaged by inductive thunderstorm. Besides, it supports wide voltage input, AC:100-240V~50/60Hz.
230W High Power Output, Diversified Applications
Providing 24 100M PoE ports in accordance with the IEEE802.3AF / AT standard, the maximum PoE output of the whole machine is 230W, and of a single port is 30W. Not afraid of burst traffic, avoid power failure & restart, and it can provide stable power supply and data transmission for HD PoE IP cameras, APs, etc.

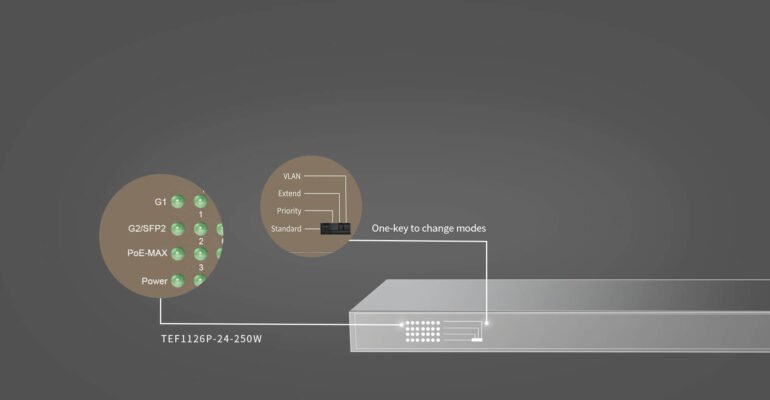

4 Modes For More Scenarios, One-key To Change Smart And Easy
Standard mode, Port-based Priority mode, Port-based VLAN mode and Extend mode make TEF1126P-24-250W be able to deal with different networks, special for small & Medium-sized IP Surveillance & WI-FI coverage project.

Up To 250 Meters Long Distance Transmission Under The Extend Mode, Beyond Hundred Meters Transfer Limitation
Due to the complex monitoring environment, the distance from each terminal to the monitoring center is different, some even more than hundred meters. TEF1126P series can support 250 meters data transmission in the Extend mode, which can save the cost of your project with less devices used.
Specification
| Product Model | TEF1126P-24-250W v1.0 | |
| Hardware Features | ||
|
Standards&Protocols |
IEEE 802.3、IEEE 802.3u、IEEE 802.3ab、IEEE 802.3x、 IEEE 802.3af、IEEE 802.3at | |
| Switching capacity | 8.8 Gbps | |
| Throughput | 6.55Mpps | |
| Dimensions (W × D × H) | 294*215*44mm | |
| RAM Data Buffer | 2.75Mb | |
|
Interfaces |
24 10/100Mbps RJ45 Ports(Data/PoE) 1 10/100/1000Mbps RJ45 Ports(Data) 1 100/1000Mbps SFP Slot(Data) (Auto Negotiation/Auto MDI/MDIX) | |
Port lightning protection |
≥6KV | |
|
Capacity |
Wire-speed forwardingForwarding mode Mac Address Table | Support |
| Store-forward and cut-through | ||
| 4K | ||
| PoE Supply | Port 1 to Port 24 support standard IEEE802.3at/af power( maximum power for each port is 30W), PoE power type is end-span(12+, 36- and 45+, 78- line pair) | |
| Input Voltage | AC:100-240V~ 50/60Hz | |
| Power consumption | in full configuration:<250W Power Supply:225W | |
Environment |
Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing | |
|
CCTV、Standard, VLAN and Extend Operation Modes Offered |
CCTV: 1-8 ports support QoS,If multiple IP cameras are connected to the switch, you are recommended to enable this mode and connect the G1 or SFP1 port of this switch to the upstream device to which the monitoring computer connects. This ensures smoother monitoring video playback. Standard: the switch functions as a common unmanaged switch and all the ports of the switch can communicate with each other. &amp;amp;amp;lt;p>VLAN: In this mode,1-24 portsof the switch cannot communicate with each other, but can communicate with the G1 and SFP1 ports.Solid DIP switch to isolate ports to prevent broadcast storm and defend DHCP spoofing。 Extend: In this mode, the data rate of 1-8 port of the switch is limited to 10 Mbps, whereas the maximum transmission distance of the port is increased to 250 meters. All the ports of the switch can communicate with each other. |
|
| Certification | FCC、CE、RoHS | |
