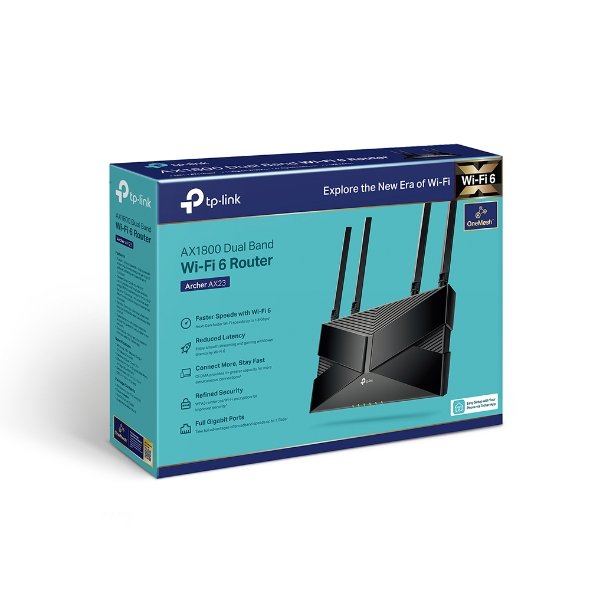

TP-Link Archer AX23 AX1800 Dual-Band Wi-Fi 6 Router

The TP-Link Archer AX23 AX1800 Dual-Band Wi-Fi 6 Router brings the latest Wi-Fi 6 technology to everyday users at an affordable price. Designed for small to medium-sized homes, it offers faster speeds, better efficiency, and improved coverage compared to traditional Wi-Fi 5 routers.

Flexible Whole-Home Wi-Fi

Four high-performance antennas and Beamforming deliver broad coverage. Furthermore, Archer AX23 supports OneMesh™ to form seamless whole-home coverage, preventing drops and lag when moving between signals

Gigabit Internet Access

Take full advantage of your broadband with speed up to 1 Gbps with a Gigabit WAN port. Plug your PCs, smart TVs and game consoles into one of the four Gigabit LAN ports for fast and reliable wired connections.

Features

Speed

• Wi-Fi 6 Technology – The new era of Wi-Fi with speeds up to 1.8 Gbps†
•  OFDMA – Provides 4× greater capacity for more simultaneous connections.
•  Next-Gen Wireless Speed – 574 Mbps on 2.4 GHz (802.11ax) + 1201 Mbps on 5 GHz (802.11ax

Wi-Fi Range

•  Ultimate Range Wi-Fi – Four high-gain external antennas deliver a Wi-Fi signal to every corner of your home, making all of your connections more efficient and stable.
•  Beamforming Technology – Concentrates Wi-Fi signals towards individual devices to ensure stronger connections

Reliability

•  Secure VPN Access – Connects to a private network with a safe and secure OpenVPN and PPTP VPN connection
•  Airtime Fairness – Balances bandwidth of connected devices to improve overall throughput and efficiency
•  Smart Connect – Intelligently switches each device’s connection to the optimum available Wi-Fi band

Ease of Use

•  Intuitive Web UI – Ensures quick and simple installation without hassle
•  WPS (Wi-Fi Protected Setup) – Help you to quickly and securely connect your devices to the router’s network with a tap
•  Easy On/Off – Turn on/off wireless radio using the Wi-Fi button.
•  Power On/Off – Conveniently power on or off your router as required
•  Hassle-free Management with Tether App – Network management is made easy with the TP-Link Tether app, available on any Android and iOS device

Security

•  Parental Controls – Manage when and how connected devices can access the internet
•  Guest Network – Provides separate access for guests to secure the home network
•  Access Control – Establishes a allowlist or denylist to allow or restrict certain devices to access the internet
•  Encryptions for Secure Network – WPA/WPA2, WPA2/WPA3 encryptions provide active protection against security threats

TP-Link Archer AX23 Technical Specification

Wireless

• Standards: IEEE 802.11ax/ac/n/a 5 GHz, IEEE 802.11ax/n/b/g 2.4 GHz
•  WiFi Speeds: 5 GHz: 1201 Mbps (802.11ax), 2.4 GHz: 574 Mbps (802.11ax)
•  WiFi Range: 4 High-Performance Antennas, Beamforming
•  WiFi Capacity: Dual-Band, OFDMA, Airtime Fairness, 4 Streams
•  Working Modes: Router Mode, Access Point Mode

Hardware

•  Processor: Dual Core CPU
•  Ethernet Ports: 1× Gigabit WAN Port, 4× Gigabit LAN Ports
•  Buttons: WPS/Wi-Fi Button, Reset Button, Power On/Off Button
•  Power: 12 V/1 A

Security

•  WiFi Encryption: WPA, WPA2, WPA3, WPA/WPA2-Enterprise (802.1x)
•  Network Security: SPI Firewall, Access Control, IP & MAC Binding, Application
  Layer Gateway
•  Guest Network: 1× 5 GHz Guest Network, 1× 2.4 GHz Guest Network
•  VPN Server: OpenVPN, PPTP

Software

•  Protocols: IPv4, IPv6
•  OneMesh: Supported
•  Parental Controls: URL Filtering, Time Controls
•  WAN Types: Dynamic IP, Static IP, PPPoE, PPTP, L2TP
•  Quality of Service: QoS by Device
•  Cloud Service: Auto Firmware Upgrade, TP-Link ID, DDNS
•  NAT Forwarding: Port Forwarding, Port Triggering, DMZ, UPnP, Virtual Server
•  DDNS: TP-Link, NO-IP, DynDNS

Physical

•  Dimensions (W×D×H): 10.2 × 5.3 × 1.6 in (260.2 × 135 × 41.6 mm)
•  Package Contents:
  Wi-Fi Router Archer AX23
  Power Adapter
  RJ45 Ethernet Cable
  Quick Installation Guide

Other

•  System Requirements:
  Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled
  browser
  Cable or DSL Modem (if needed)
  Subscription with an internet service provider (for internet access)
•  Certifications: FCC, CE, RoHS
•  Environment:
  Operating Temperature: 0℃~40℃ (32℉ ~104℉)
  Operating Humidity: 10%~90% non-condensing

Test Data

•  WiFi Transmission Power:
  CE: <20dBm{2.4GHz}
  <23dBm{5.15GHz~5.35GHz}
  <30dBm{5.47GHz~5.725GHz
