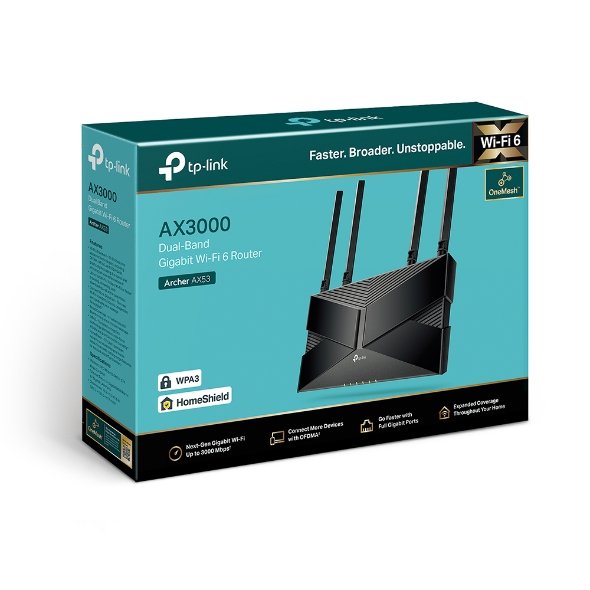

TP-Link TL-ARCHER AX53 AX3000 Wireless Dual Band Gigabit Wi-Fi 6 Router
The TP-Link Archer AX53 (AX3000) is a dual-band Wi-Fi 6 router designed to deliver high-speed, low-latency connectivity for homes and small offices.
Blazingly Fast Gigabit Speed Can’t Wait
There is no reason to hold off on buying a Wi-Fi 6 router when you can already take full advantage of the speed it delivers. Featuring a 160 MHz bandwidth and 1024-QAM, Archer AX53 delivers true Gigabit speeds of up to 3 Gbps.
Enjoy faster streaming and gaming like never before. Powered by a powerful dual-core CPU, this full-featured Gigabit Wi-Fi 6 router allows numerous bandwidth-intensive tasks to run smoothly at the same time.
Flexibly Create Whole Home Mesh WiFi
If you have any dead zones at home, just add another EasyMesh-compatible devices to further form your whole home mesh WiFi. No more searching for a stable connection.
WPA3—The Next Level of Cybersecurity
The latest WiFi security protocol, WPA3, brings new capabilities to improve cybersecurity in personal networks. More secure encryption in WiFi password safety and enhanced protection against brute-force attacks combine to safeguard your home WiFi.
Easy Setup and Use
Whether you prefer the intuitive Tether app or TP-Link’s powerful web interface, you can set up your Archer AX53 in minutes.
The Tether app allows you to manage network settings from any Android or iOS device.
Specification
WIRELESS |
|
---|---|
Standards and Protocols | Wi-Fi 6 IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/b/g 2.4 GHz |
WiFi Speeds | AX3000 5 GHz: 2402 Mbps (802.11ax, HE160) 2.4 GHz: 574 Mbps (802.11ax) |
WiFi Range | 2-3 Bedroom Houses
4× Fixed High-Performance Antennas Beamforming High-Power FEM |
WiFi Capacity | High
Dual-Band OFDMA Airtime Fairness DFS 4 Streams |
Working Modes | Router Mode Access Point Mode |
SECURITY |
|
---|---|
Network Security | SPI Firewall Access Control IP & MAC Binding Application Layer Gateway Home Shield Security |
Guest Network | 1× 5 GHz Guest Network 1× 2.4 GHz Guest Network |
VPN Server | OpenVPN PPTP VPN |
VPN Client | • Open VPN Client • PPTP VPN Client • WireGuard VPN Client |
WiFi Encryption | WPA WPA2 WPA3 WPA/WPA2-Enterprise |
HARDWARE |
|
---|---|
Ethernet Ports | 1× Gigabit WAN Port 4× Gigabit LAN Ports |
Buttons | Wi-Fi/WPS Button Power On/Off Button Reset Button |
Power | 12 V ⎓ 2 A |
SOFTWARE |
|
---|---|
Protocols | IPv4 IPv6 |
Service Kits | Home Shield |
Easy Mesh | Mesh networking creates smooth, fast, stable roaming. Archer AX53 can flexibly build an Easy Mesh network with Easy Mesh-Compatible devices, which eliminates Wi-Fi dead zones, expand your network, and fill your entire home with high-speed Wi-Fi. Seamless Wi-Fi connections with one network name, one-click setting and flexible scalability. |
Parental Controls | Home Shield Parental Controls
Custom Profiles |
WAN Types | Dynamic IP Static IP PPPoE PPTP L2TP |
Quality of Service | QoS by Device |
Cloud Service | Auto Firmware Upgrade OTA Firmware Upgrade TP-Link ID DDNS |
NAT Forwarding | Port Forwarding Port Triggering DMZ UPnP |
IPTV | IGMP Proxy IGMP Snooping Bridge Tag VLAN |
DHCP | Address Reservation DHCP Client List Server |
DDNS | TP-Link NO-IP DynDNS |
Management Features | Tether App Webpage |
OTHER |
|
---|---|
System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access) |
Certifications | CE, RoHS |
Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) Operating Humidity: 10%~90% non-condensing |
TEST DATA |
|
---|---|
WiFi Transmission Power | CE: <20dBm (2.4GHz); <23dBm (5.15GHz~5.35GHz); <30dBm (5.47GHz~5.725GHz) |
WiFi Reception Sensitivity |
2.4GHz: 5GHz: |
PHYSICAL |
|
---|---|
Dimensions (W×D×H) | 10.2 × 5.3 × 1.6 in (260.2 × 135 × 41.6 mm) |
Package Content | Wireless Router Archer AX53 Power Adapter RJ45 Ethernet Cable Quick Installation Guide |
