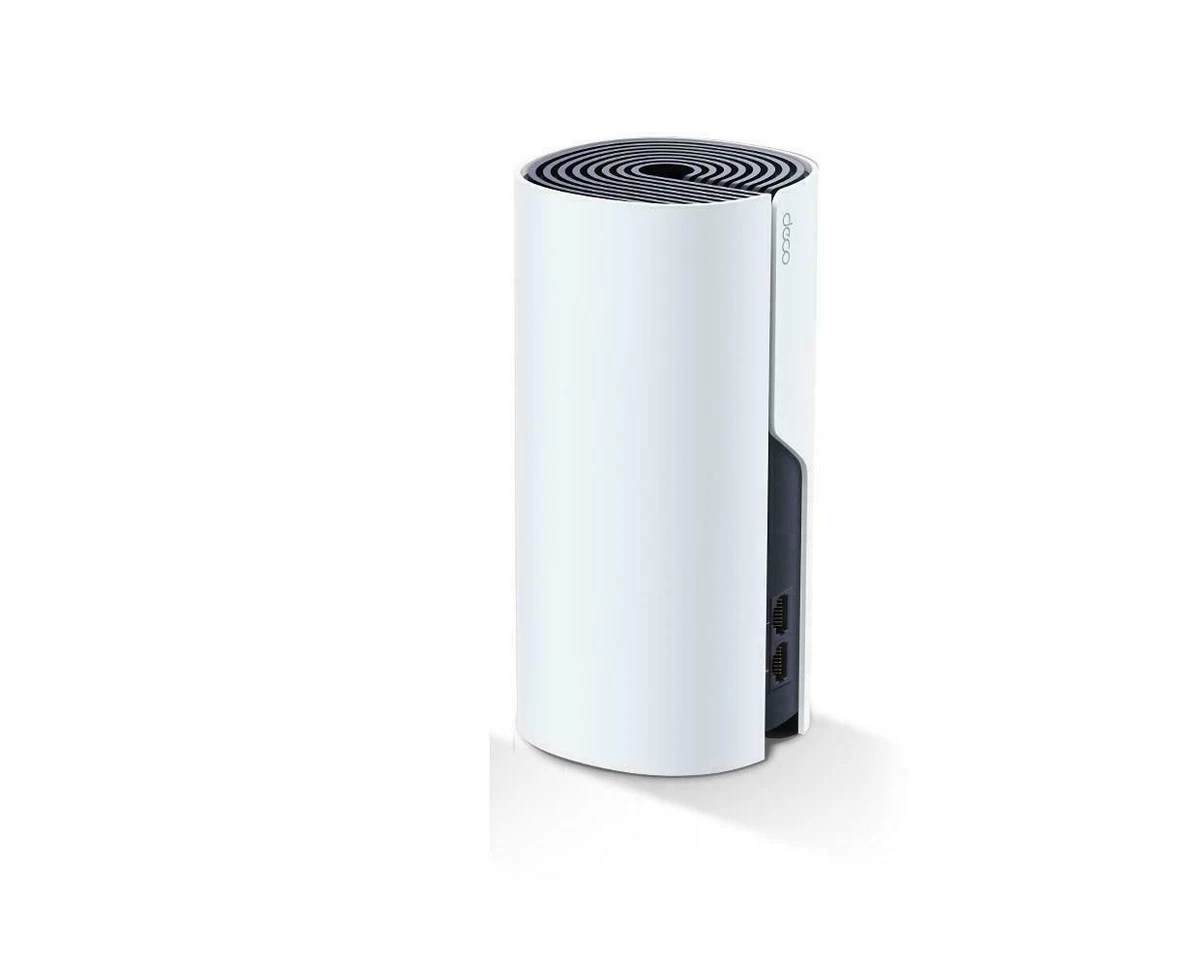

AC1200+AV1000 Whole Home Hybrid Mesh WiFi System TL-DECO P9
Deco P9
- Powerline Backhaul: The Powerline Deco P9 AC 1200 adds a third lane for data to travel through, similar to a Tri-band mesh router, to create stronger connections between Deco units and increase the network’s overall performance, eliminating signal interference from walls and other objects. ‡*
- Whole Home Coverage: Cover up to 6,000 sq. ft. with seamless, high-performance WiFi that eliminates dead zones and buffering.†
- Intelligent WiFi Network: Unite your home under a single WiFi name and password while enjoying a seamless connection as you walk from room to room.△
- Parental Controls: Manage, limit and monitor internet use with parental controls that let you customize WiFi access for every person and device in your home
- Easy Setup and Management: The Deco app helps you set up your network in minutes with clear visual guidance and keeps you in control even when you aren’t home.
- Works With Alexa: Pair with Alexa to share your guest password, add devices and more using just your voice.
- Universally Compatible: Deco P9 AC1200 works with any internet service provider (ISP) and modem.
WIRELESS |
|
|---|---|
| Standards | Wi-Fi 5 IEEE 802.11ac/n/a 5 GHz IEEE 802.11n/b/g 2.4 GHz |
| WiFi Speeds | AC1200 5 GHz: 867 Mbps (802.11ac) 2.4 GHz: 300 Mbps (802.11n) |
| Powerline Speeds | HomePlug AV2 1000 Mbps Powerline |
| WiFi Range | 4-6 Bedroom Houses (3-pack)
TP-Link Mesh Technology Powerline Technology 2× Antennas (Internal) Beamforming |
| WiFi Capacity | Medium
Dual-Band MU-MIMO |
| Working Modes | Router Mode Access Point Mode |
HARDWARE |
|
|---|---|
| Ethernet Ports | 2× Gigabit Ports
*Per Deco Unit |
| Buttons | Reset Button |
SECURITY |
|
|---|---|
| WiFi Encryption | WPA-Personal WPA2-Personal |
| Network Security | SPI Firewall Access Control |
| Guest Network | 1× 5 GHz Guest Network 1× 2.4 GHz Guest Network |
SOFTWARE |
|
|---|---|
| Protocols | IPv4 IPv6 |
| Parental Controls | URL Filtering Time Controls |
| WAN Types | Dynamic IP Static IP PPPoE PPTP L2TP |
| Quality of Service | QoS by Device |
| Cloud Service | OTA Firmware Upgrade TP-Link ID DDNS |
| NAT Forwarding | Port Forwarding UPnP |
| IPTV | IGMP Proxy IGMP Snooping Bridge Tag VLAN |
| DHCP | Address Reservation DHCP Client List Server |
| DDNS | TP-Link |
| Management | Deco App |
TEST DATA |
|
|---|---|
| WiFi Transmission Power | CE: <20 dBm (2.4 GHz) <23 dBm (5 GHz) FCC: <30 dBm |
| PHYSICAL | |
|---|---|
| Dimensions (W×D×H) | 3.6 × 3.6 × 7.5 in (90.7 × 90.7 × 190 mm) |
| Package Contents | Deco P9 (3-pack) 3 Deco P9 Units 1 RJ45 Ethernet Cable 3 Power Adapters 1 Quick Installation GuideDeco P9 (2-pack) 2 Deco P9 Units 1 RJ45 Ethernet Cable 2 Power Adapters Quick Installation GuideDeco P9 (1-pack) Deco P9 Unit RJ45 Ethernet Cable Power Adapter Quick Installation Guide |
OTHERS |
|
|---|---|
| System Requirements | Android 5.0 or later iOS 9.0 or later *Note: The minimum system requirements will be updated alongside updates to the app, subject to official website information. |
| Certifications | CE, FCC, IC, NCC, BSMI, IDA, RCM, JPA, JRF, VCCI, KC, RoHS |
| Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
