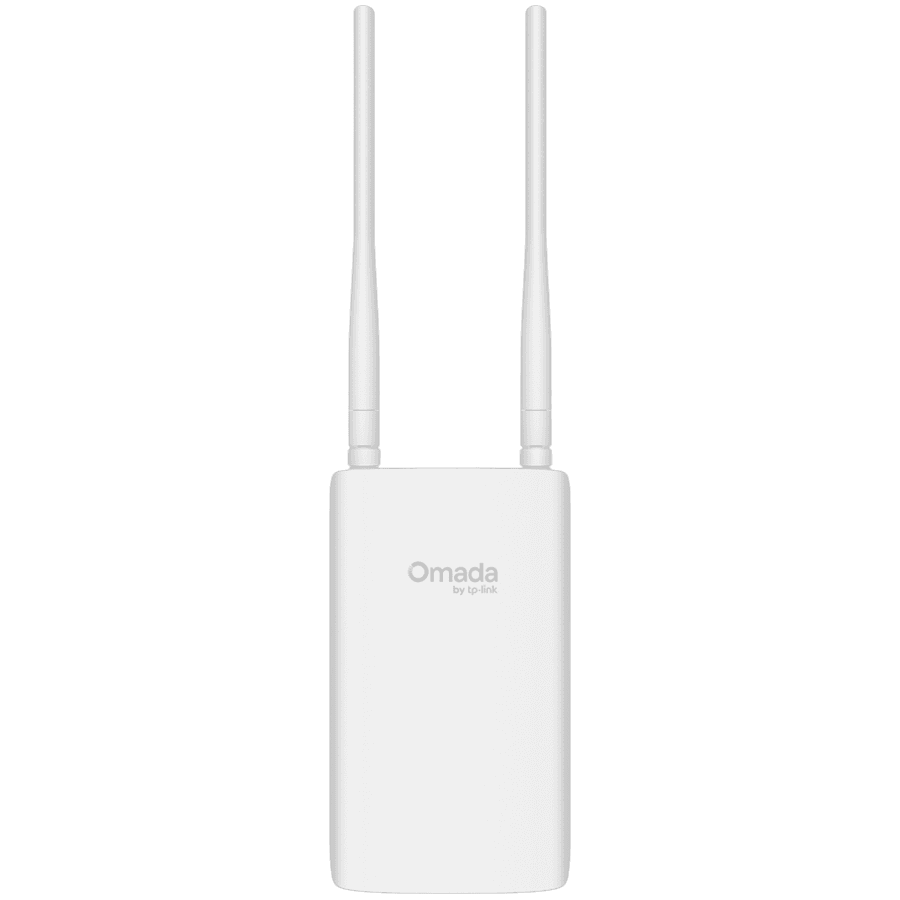

TP-Link EAP603-OUTDOOR AX1800 Indoor/Outdoor WiFi 6 Access Point
The TP-Link EAP603-outdoor data transmission device provides a Wi-Fi network that affects the user experience more than ever before. Using the next-generation Wi-Fi 6 technology, it has excellent speed, greater capacity and better network efficiency.
The EAP603 uses the most advanced Wi-Fi technology – Wi-Fi 6. This device is capable of serving several users at the same time, which allows hundreds of devices to be connected to a network. It also improves network efficiency and ensures fast data transfer.
The EAP603-outdoor device with an IP65 protection level provides protection against water, dust and other contaminants. The plastic housing and special connectors provide excellent resistance and protection, so the device can withstand adverse weather conditions.
The central management service unifies Wi-Fi network settings, provides automatic monitoring and wireless network management. AI-powered technology performs automatic network optimization to improve data connection speed and stability.
This device can be controlled easily and intuitively through the Omada app. Remote monitoring and management, built-in diagnostics and network status reports allow users to easily manage and maintain their network.
Specification
HARDWARE FEATURES | |
|---|---|
| Interface | • 1× 10M/100M/1000Mbps Gigabit Ethernet Port (RJ45); PoE in • 1× Grounding Terminal |
| Button | 1× Reset button: Press the button for longer than 5 seconds to make the device restore to factory settings. |
| Power Supply | Input: 802.3at PoE+: 42.5 – 57 V, 0.36A |
| Max. Power Consumption | • 802.3at (PoE+): 15.8w, 2.4GHz radio 2×2, 5GHz radio 2×2, wired link rate can be up to 1 Gbps, etc. • Idle mode: 4.8W(PoE) |
| Dimensions ( W x D x H ) | • Main Unit: 230 × 207.5 × 69.7 mm (9.06 × 8.17 × 2.74 in.) • Shipping Unit: 324 × 104 × 245 mm (12.76 × 4.09 × 9.65 in.) |
| Antenna | Wi-Fi • 2.4 GHz: 2 × 4 dBi (peak gain), external omnidirectional antennas • 5 GHz: 2 × 5 dBi (peak gain), external omnidirectional antennas *Note: The gains above are the single-antenna peak gains.IoT • Bluetooth: 1 × 4 dBi (peak gain), internal omnidirectional antennas |
| Bluetooth | Yes |
| Weatherproof Enclosure | IP66 for Wall Mount IP65 for Pole Mount |
| Mounting | • Pole Mount (Kits included) • Wall Mount (Kits included) |
WIRELESS FEATURES | |
|---|---|
| Coverage | • 2.4 GHz: up to 2,150 ft (200 m) • 5 GHz: up to 3,200 ft (300 m) |
| Wireless Standards | 5 GHz: IEEE 802.11a/n/ac/ax 2.4 GHz: IEEE 802.11b/g/n/ax |
| Frequency | • 5 GHz • 2.4 GHz |
| Signal Rate | • 2.4 GHz: up to 573 Mbps • 5 GHz: up to 1201 Mbps *Note: Country-Specific Restriction Apply |
| Wireless Functions |
|
Wireless Security |
|
| Transmission Power | Maximum transmit power: CE (ERIP)
Adjustable power increment: 1 dBm *Note: MIMO combined power, excluding antenna gains. The actual |
Management Features | |
|---|---|
| Omada App | Yes |
| Restore & Backup | Yes |
| Firmware update via Web | Yes |
| NTP | Yes |
| Centralized Management | • Omada Hardware Controller • Omada Software Controller • Omada Central (Cloud-Based) • Omada App |
| Cloud Access | Yes. Require the use of an Omada controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| SSH | Yes |
| Web-based Management | Yes |
OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Content | • EAP603-Outdoor • Passive PoE Adapter • Power Cord • Installation Guide • Mounting Kit • Waterproof Kit |
| Environment | • Operating Temperature: -30 °C–70 °C (-22 °F–158 °F); • Storage Temperature: -40 °C–70 °C (-40 °F–158 °F); • Operating Humidity: 10%–90% non-condensing; • Storage Humidity: 5%–90% non-condensing |
