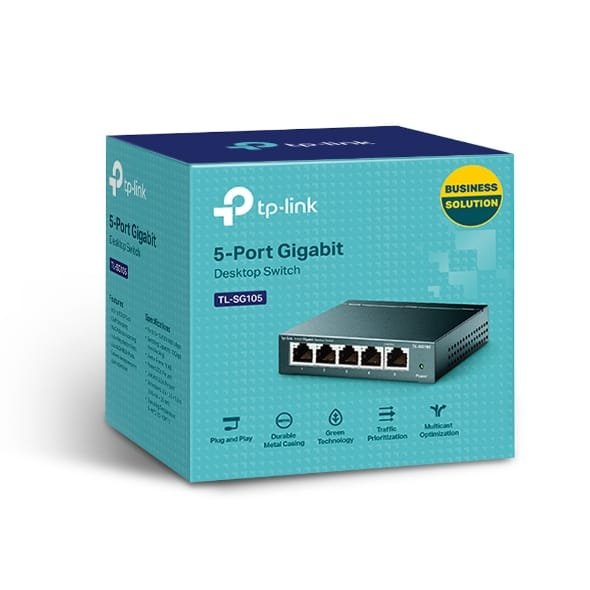

TP-Link TL-SG105D UN5-Port Gigabit Desktop Switch
Original price was: KSh 3,000.00.KSh 2,500.00Current price is: KSh 2,500.00. excl. VAT
- 5× 10/100/1000 Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
- Plug and play, no configuration needed
- Supports 802.1p/DSCP QoS and IGMP Snooping functions
- Durable metal casing, desktop/wall-mounting options, and a fanless design
- IEEE 802.3x flow control provides reliable data transfer
- Green Ethernet technology reduces power consumption
- Monitor and address loop-related issues within your network structure to prevent disruptions caused by looping
TP-Link TL-SG105D UN5-Port Gigabit Desktop Switch
The TP-Link TL-SG105D UN 5-Port Gigabit Desktop Switch is an unmanaged 5-port Gigabit Ethernet switch designed to expand wired networks for homes, offices, and small businesses. It provides five 10/100/1000 Mbps RJ45 ports, allowing multiple devices to communicate at Gigabit speeds without requiring any configuration. Its compact metal housing, fanless design, and plug-and-play operation make it a reliable solution for desktops, workstations, IP cameras, NAS devices, printers, and gaming consoles.
Conveniently Conduct Business
The TL-SG105 Desktop Switch provides an easy way to increase the speed of your network server and backbone connections. Whether you are at home or in the office, the TL-SG105 helps you deal with your business quickly and easily, any time.
Plug and Play, No Configuration Required
A plug-and-play design makes for easy deployment, no technician needed. Auto-negotiation on each port senses the link speed of a network device and intelligently adjusts to ensure full compatibility and optimal performance.
Five Gigabit Ports for Faster Speeds
Increase the speed of your network with the TL-SG105 5-port Gigabit desktop switch. 5 non-blocking 10/100/1000 Mbps ports enable instant transferring of large, bandwidth intensive files without interference.
Technical Specification
| Standards and Protocols | IEEE 802.3i/802.3u/ 802.3ab/802.3x, IEEE 802.1p |
|---|---|
| Interface | 5× 10/100/1000 Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports |
| Fan Quantity | Fanless |
| External Power Supply | External Power Adapter (Output: 5 V DC / 0.6A) |
| LED | System Power Link/Act indicators per port built into each RJ-45 port |
| Dimensions ( W x D x H ) | 3.9 x 3.9 x 1.0 in (100 x 98 x 25 mm) |
| Max. Power Consumption | 3.0 W (220 V/ 50 Hz) |
| Max Heat Dissipation | 10.23 BTU/h |
PERFORMANCE | |
|---|---|
| Packet Forwarding Rate | 7.4 Mpps |
| MAC Address Table | 2K |
| Packet Buffer Memory | 1 Mb |
| Jumbo Frame | V8: 16 KB V9: 9 KB |
SOFTWARE FEATURES | |
|---|---|
| Advanced Features | Green Technology 802.3X Flow Control 802.1P/DSCP QoS (for V2 and later version) IGMP Snooping Loop Prevention |
| Transmission Method | Store and Forward |
OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Content | 5-Port 10/100/1000Mbps Desktop Switch Power Adapter Installation Guide |
| Environment | V8: Operating Temperature: 0–40 °C (32–104 °F) Storage Temperature: -40–70 °C (-40–158 °F) Operating Humidity: 10–90% RH non-condensing Storage Humidity: 5–90% RH non-condensingV9: Operating Temperature: -5–40 °C (23–104 °F) Storage Temperature: -40–70 °C (-40–158 °F) Operating Humidity: 10–90% RH non-condensing Storage Humidity: 5–90% RH non-condensing |
