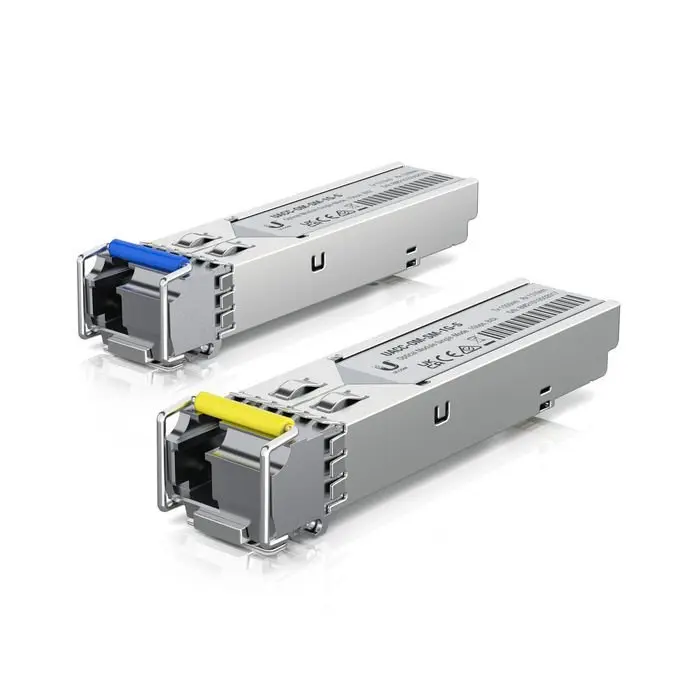

Ubiquiti UACC-OM-SM-1G-S-2 1G Bidirectional Single-Mode Optical Module 2-Pack
The Ubiquiti UACC-OM-SM-1G-S-2 1 Gbps Bidirectional Single-Mode Optical Module is a cutting-edge optical transceiver designed for bidirectional data transmission over single-mode fiber (SMF) optic cables. Engineered to support data rates of up to 1.25 gigabits per second (Gbps), this module offers exceptional performance and reliability for a wide range of network applications.
Featuring an LC connector, the UACC-OM-SM-1G-S-2 ensures secure and reliable connections to SMF optic cables, maintaining signal integrity and minimizing the risk of data loss or transmission errors. Its duplex design allows for easy installation and compatibility with standard networking equipment.
- Simplex LC Connector
- Up to 1.25 Gb/s Throughput
- 1310 nm TX / 1550 nm RX (Blue)
- 1550 nm TX / 1310 nm RX (Yellow)
- LC Connectors
- Single-Mode Fiber
- Up to 1.9 Mile Range
Specifications
| Supported Media | Single-Mode Fiber |
| Connector Type | (1) LC |
| BiDi | Yes |
| TX Wavelength* | Blue Latch: 1310 nm Yellow Latch: 1550 nm |
| RX Wavelength* | Blue Latch: 1550 nm Yellow Latch: 1310 nm |
| Data Rate | 1.25 Gbps |
| Max. Power Consumption | 0.66W |
| Cable Distance | 3 km |
| Operating Temperature | 0 to 70° C (32 to 158° F) |
| Pack Options | 2-pack, 20-pack |
| WARNING | CLASS 1 LASER PRODUCT, IEC/EN 60825-1:2014 – Do not look into the ends of the fiber optic cable or SFP module while converters are powered. |
