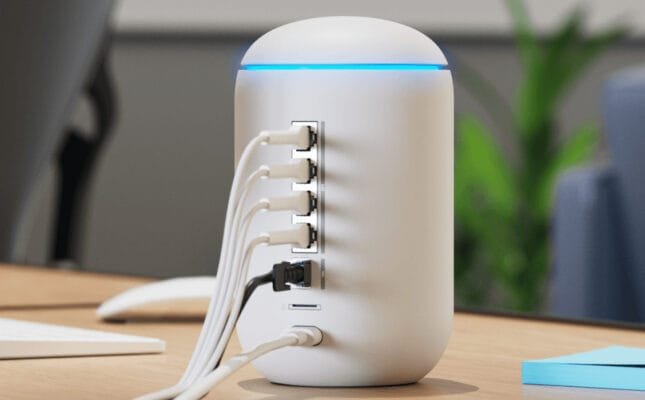

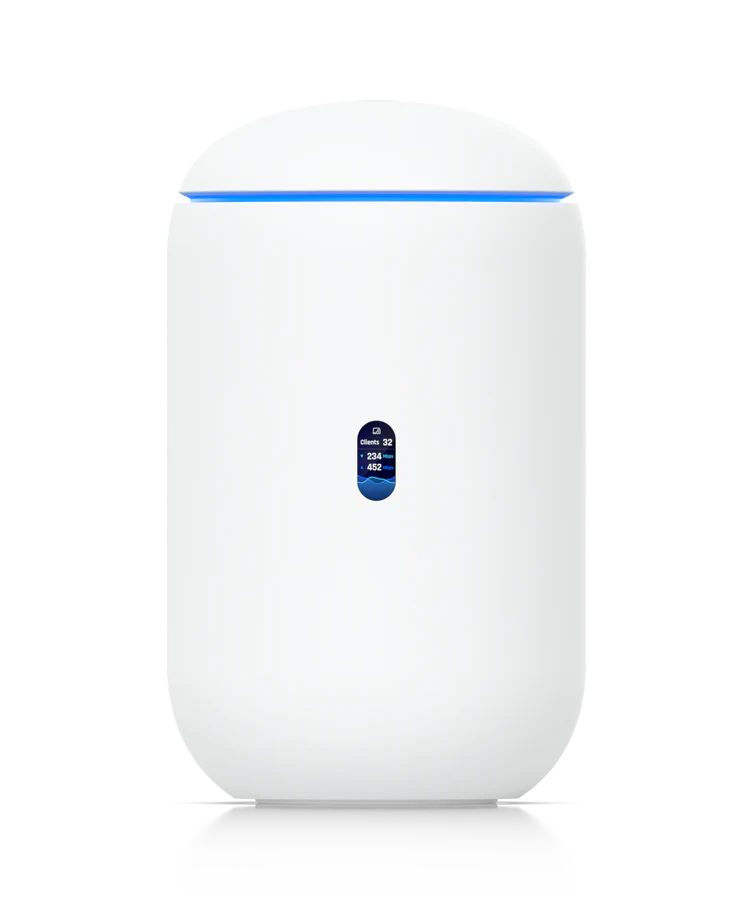

Ubiquiti UDR7 UniFi Dream Router 7

The Ubiquiti UDR7 UniFi Dream Router 7 is a next-generation all-in-one router designed for high-speed home networks and small-to-medium businesses, combining Wi-Fi 7, security, and UniFi management in a single device. The UniFi Dream Router 7can seamlessly run all UniFi applications at once and boasts:

• An LCM status screen for at-a-glance updates
• A 2.5 GbE switch with a PoE port and an SFP+ port for WAN or LAN connectivity.
• SD-Card storage for Protect and other UniFi applications.
• An integrated power supply
• A super-antenna system for high-performance WiFi

With 6-stream 6GHz WiFi 7 performance and full 10 Gigabit support, the UDR7 is perfect for the networks of today and tomorrow. This is a perfect solution for a small branch office, coffee shop, or even for fiber ISPs looking for a perfect residential/SMB routing and Wi-Fi solution.

Ubiquiti UniFi Dream Router 7 Key Features:

• Integrated 6-stream WiFi 7 AP with 6 GHz support
• Includes full UniFi application suite for device management
• Manages 30+ UniFi devices and 300+ clients
• Integrated 4-port switch with (1) PoE port
• (1) 10G SFP+ and (1) 2.5 GbE RJ45 WAN port
• 64 GB microSD storage pre-installed (upgradable)

Ubiquiti UDR Technical Specifications

Mechanical

• Dimensions: Ø110 x 184.1 mm (Ø4.3 x 7.3″)
• Weight: 1.1 kg (2.4 lb)
• Enclosure material: Polycarbonate

Hardware

• Processor specs: Quad-core Arm® Cortex® A53 at 1.5 GHz
• System memory: 3 GB DDR4
• Expansion slot: MicroSD memory card* (optional) – *64 GB pre-installed microSD.
• Management interface: Ethernet, Bluetooth
• Networking interfaces: LAN: (3) 2.5 GbE RJ45 ports WAN: (1) 10G SFP+ port (1) 2.5 GbE RJ45 port
•  PoE interface: (1) PoE (Pair A 1, 2+; 3, 6-)
•  IDS/IPS throughput:  2.3 Gbps
•  Power method:  Universal AC input, 100—240V AC, 1.5A Max., 50/60 Hz
• Power supply:  AC/DC, internal, 50W
•  Supported voltage range:  100—240V AC
•  Max. power consumption:  26W (Excluding PoE output)
•  PoE budget:  15.4W
•  Max. PoE wattage per port by PSE:  15.4W
•  Voltage range PoE mode:  44—57V DC
•  Max. TX power:
  2.4 GHz 22dBm
  5 GHz 26dBm
  6 GHz 23 dBm
•  MIMO
  2.4 GHz 2×2 (DL/ UL MU- MIMO)
  5 GHz 2×2 (DL/ UL MU- MIMO)
  6 GHz 2×2 (DL/ UL MU- MIMO)
•  Throughput rate
  2.4 GHz 688 Mbps (BW40)
  5 GHz 4.3 Gbps (BW240)
  6 GHz 5.7 Gbps (BW320)
•  Antenna gain
  2.4 GHz 5 dBi
  5 GHz 7 dBi
  6 GHz 6 dBi
•  LCM display:  (1) 0.96″ screen
•  Button:  Factory reset
•  LEDs:  White/blue
•  Ambient operating temperature:  -10 to 40° C (14 to 104° F)
•  Ambient operating humidity:  5 to 95% noncondensing
•  Certifications:  CE, FCC, IC

Gateway Features

•  Performance
  WiFi QoS with UniFi APs
  Application, domain, and country-based QoS
  Application and device type identification
  Additional internet failover with LTE Backup
  Internet quality and outage reporting
•   Next-generation security
  Application-aware firewall rules
  Signature-based IPS/IDS threat detection
  Content, country, domain, and ad filtering
  VLAN/subnet-based traffic segmentation
  Full stateful firewall
•   Advanced networking
  License-free SD-WAN
  WireGuard, L2TP and OpenVPN server
  OpenVPN client
  OpenVPN and IPsec site-to-site VPN
  One-click Teleport and Identity VPN
  Policy-based WAN and VPN routing
  DHCP relay
  Customizable DHCP server
  IGMP proxy
  IPv6 ISP support

Software

• WiFi standards: 802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7)
• Wireless security:  WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
• BSSID: 4 per radio
• VLAN:  802.1Q
• Advanced QoS:  Per-user rate limiting
• Guest traffic isolation:  Supported
• Concurrent clients:  300+

Supported Data Rates

• 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 802.11b: 1, 2, 5.5, 11 Mbps
• 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 802.11n: 6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40)
• 802.11ac: 6.5 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80/160)
• 802.11ax (WiFi 6): 7.3 Mbps to 2.4 Gbps (MCS0 – MCS11 NSS1/2, HE 20/40/80/160)
• 802.11be (WiFi 7) 7.3 Mbps to 5.7 Gbps (MCS0 – MCS13 NSS1/2, EHT 20/40/80/160/240/320)

Application Requirements

• UniFi Network Version 9.0.108 and later
