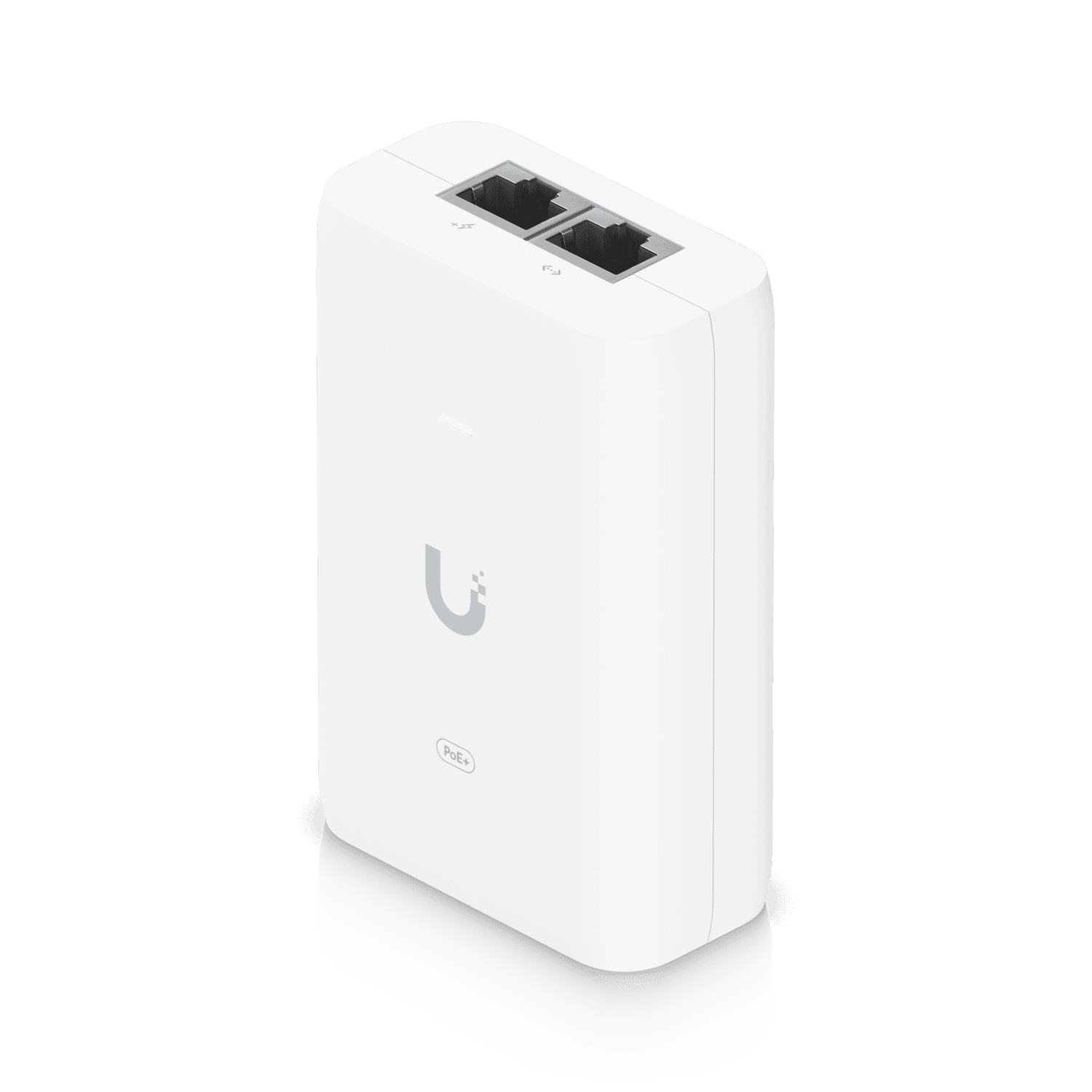

Ubiquiti Unifi U-PoE+ PoE+ Adapter (30W)
The Ubiquiti UniFi U-PoE+ Adapter (30W) (model: U-POE-at) is a compact PoE+ injector used to power UniFi devices over Ethernet—ideal when you don’t have a PoE switch.
U-PoE+ Key Features:
- Delivers up to 30W of PoE+
- Even more power for UA Hub, G4 PTZ, and other PoE++ devices
- Surge, peak pulse, and overcurrent protection
- Contains RJ45 data input, AC cable with earth ground, and PoE++ output
- LED indicator for status monitoring
Ubiquiti PoE+ – Specifications
General
- Model U-PoE+
- Dimensions 93 x 62 x 35 mm (3.7 x 2.4 x 1.4″)
- Weight 156g
- Output voltage 48V DC @ 0.65A
- LAN activity indicator No
- Gigabit LAN port Yes
- Remote reset capability No
- Reset button No
- Rated voltage 100—240V AC @ 50/60Hz
- Input current 1.3A @ 120V AC0.75A @ 230V AC
- Inrush current <100A peak @ 120V AC
- <200A peak @ 230V AC
- Efficiency 85+%
- Output ripple 1% max.
- Switching frequency 65 kHz
- Line regulation ≤ 1%
- Load regulation ≤ 3%
- 2-pair powering Pins 4, 5 (+) and 7, 8 (-)
- AC connector IEC-320 C6
- Data In / PoE RJ45 shielded socket
- Surge protection Difference and common mode
- Clamping protection 11V data, 60V power
- Max. surge discharge 1500A (8/20 μs) power
- Peak pulse current 36A (10/1000 μs) data
- Shunt capacitance <5 pF data
- Response time <1 ns
- Power method Universal AC input, 100—240V AC, 50/60Hz, (48V@ 1.25A)
- Power supply AC/DC
- Supported voltage range 100—240V AC
- Max. PoE+ wattage per port by PSE 60W
- Operating temperature 0 to 40° C (32 to 104° F)
- Storage temperature -30 to 70°C (-22 to 158° F)
- Operating humidity 10 to 95% noncondensing
- Certifications CE, FCC, IC, UL, CCC
