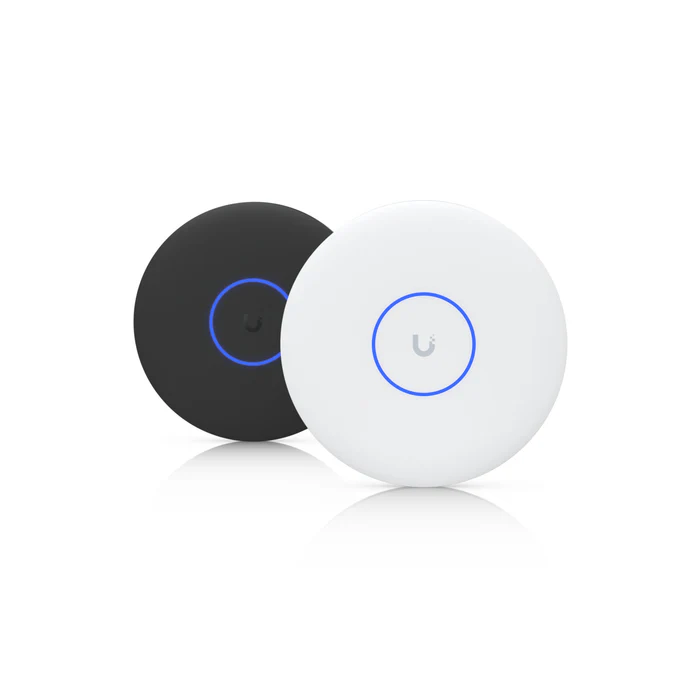

Ubiquiti UniFi U7 Pro XGS WiFi 7 Access Point
The Ubiquiti Unifi U7 Pro XG is engineered to deliver cutting-edge wireless connectivity by leveraging Wi-Fi 7 (802.11be) technology. This access point operates across the 2.4 GHz, 5 GHz, and 6 GHz frequency bands, each utilizing a 2×2 (DL/UL MU-MIMO) configuration.
U7 Pro XG achieves maximum data rates of 688 Mbps on the 2.4 GHz band, 4.3 Gbps on the 5 GHz band, and 5.8 Gbps on the 6 GHz band. The device supports channel bandwidths up to 320 MHz, facilitating high-throughput data transmission.
With a coverage area of approximately 140 m² and the capacity to handle over 300 concurrent clients, the U7 Pro XG is well-suited for high-density environments requiring robust and reliable wireless performance.
Specification
| Details | |
|---|---|
| Manufacturer’s Code | U7-Pro-XG |
| WiFi Standard | WiFi 7 |
| Spatial Streams | 6 |
| MIMO | 6 GHz 2 x 2 (DL/UL MU-MIMO), 5 GHz 2 x 2 (DL/UL MU-MIMO), 2.4 GHz 2 x 2 (DL/UL MU-MIMO) |
| Max. Data Rate | 6 GHz 5.8 Gbps (BW320), 5 GHz 4.3 Gbps (BW240), 2.4 GHz ,688 Mbps (BW40) |
| Antenna Gain | 6 GHz 6 dBi, 5 GHz 5 dBi, 2.4 GHz 4 dBi |
| Max. TX Power | 6 GHz 24 dBm, 5 GHz 26 dBm, 2.4 GHz 23 dBm |
| Max. BSSIDs | 8 per Radio |
| Coverage Area | 140 m² (1,500 ft²) |
| Max. Client Count | 300+ |
| Uplink | 10 GbE |
| Features | Wireless Meshing, Band Steering, 802.11v BSS Transition Management, 802.11r Fast Roaming, 802.11k Radio Resource Management (RRM), Advanced Radio Management, Passpoint (Hotspot 2.0), Captive Hotspot Portal, Private Pre-Shared Key (PPSK), WiFi Speed Limiting, Client Device Isolation, WiFi Schedules, RADIUS over TLS (RadSec), Dynamic RADIUS-assigned VLAN |
| Mounting | Ceiling, Wall (Lite Mount Included) |
| Power Method | PoE+ |
| Max. Power Consumption | 22W |
| Supported Voltage Range | 42.5—57V DC |
| Networking Interface | (1) 10 GbE RJ45 port |
| Dimensions | Ă˜206 x 32.5 mm |
| Weight | 750 g (1.7 lb) |
| Management | Ethernet |
| Enclosure Material | UV-stabilized polycarbonate, aluminum alloy |
| Mount Material | Stainless steel (SUS304), galvanized steel (SGCC) |
| LEDs | System White/Blue |
| Channel Bandwidth | HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz) |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC |
| Ambient Operating Temperature | -30 to 40° C (-22 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Software Application Requirements | UniFi Network |
