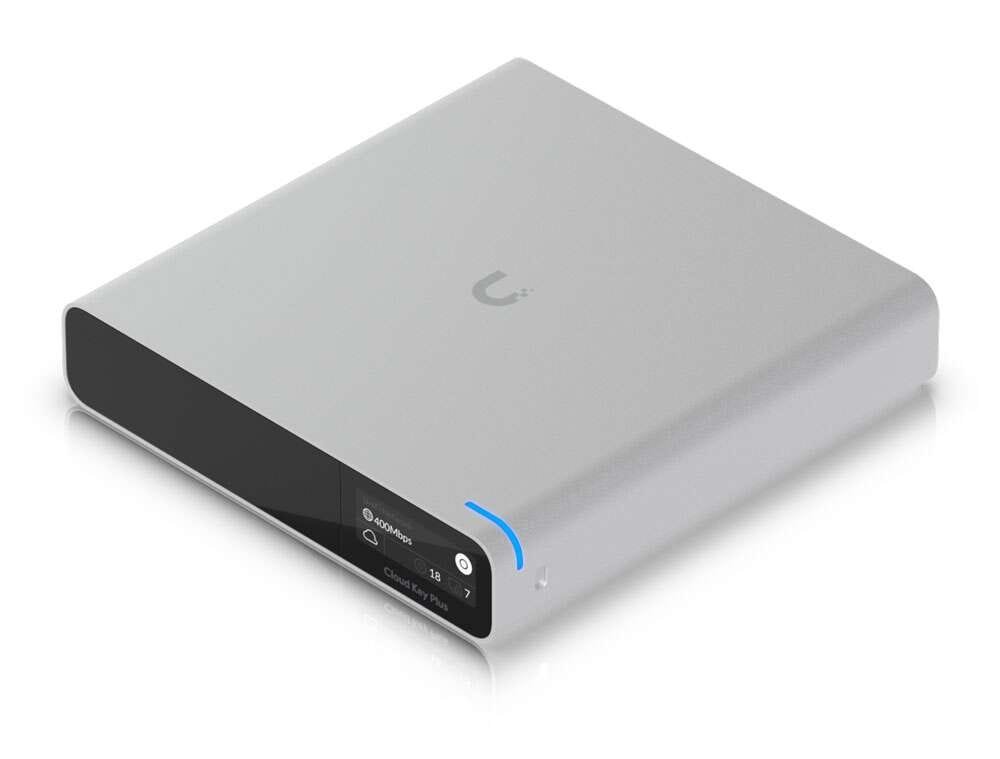

Ubiquiti UniFi UCK-G2-SSD CloudKey+

The Ubiquiti UniFi UCK-G2-SSD CloudKey+ is a compact UniFi controller with built-in SSD storage, designed to manage your entire UniFi network and run video surveillance (UniFi Protect) without needing a dedicated server.

Ubiquiti UniFi CloudKey+ SSD Key Features

• Includes full UniFi application suite for device management
• Pre-installed 1TB SSD
• Connect and power using PoE
• Optional USB-C power with Quick Charge 2.0/3.0 compliant adapter only
• Bluetooth for instant setup

For enhanced data protection, the system supports RAID storage technology, ensuring reliability and security of stored video footage. Additionally, it includes two hot-swappable power supply units (PSUs) for power redundancy, minimising downtime and maintaining continuous operation in case of a PSU failure.

High Performance Cloud Key Gen2 Plus
Featuring SDN Controller, UniFi Protect, 1 TB Storage, Up to 20 cameras, Expansion Support and Bluetooth

Responsive Controller Experience
4x Faster Performance than the original Cloud Key

Multiple Controllers in Cloud Key Gen2 Plus
Easily scale your security system with up to 20 cameras and up to 50 UniFi Devices. Store your data in the Cloud Key, not the cloud, for maximum security with Easy-to-use UniFi Controller Interface

Versatile Rack-mount Accessory
The Cloud Key G2 and Cloud Key G2 Plus lock securely into the back of the Rack Mount Accessory for a clean and secure installation

Ubiquiti UniFi CloudKey Plus SSD – Technical Specifications

Mechanical

• Dimensions: 131.2 x 27.1 x 134.2 mm (5.2 x 1.1 x 5.3″)
• Weight: 560 g (1.2 lb)
• Enclosure material: Anodised aluminium

Hardware

• Processor: Octa-core Arm® Cortex®-A53 based chip
• Management interface: Ethernet, Bluetooth
• Networking interface: (1) GbE RJ45 port
• Memory:
  • 32 GB eMMC
  • 3 GB RAM
• SSD capacity: 1 TB 2.5″ SATA SSD (user-upgradeable*)
• *CloudKey+ only supports drives that can operate on 5V power. Drives that require additional power are not supported.
• Power method: PoE, Quick charge 2.0/3.0 power adapter, 9V DC, 2A
• Max. power consumption: 9.6W
• Display: 1.42″ gray-scale OLED
• LEDs:
  • (1) Power: white/blue
• Buttons:
  • (1) Power
  • (1) Factory reset
• Ambient operating temperature: 0 to 35° C (32 to 104° F)
• Ambient operating humidity: 20 to 80% non-condensing
• Certifications: FCC, CE, IC

Capacity

• HD cameras: 24
• 2K cameras: 14
• 4K cameras: 8
