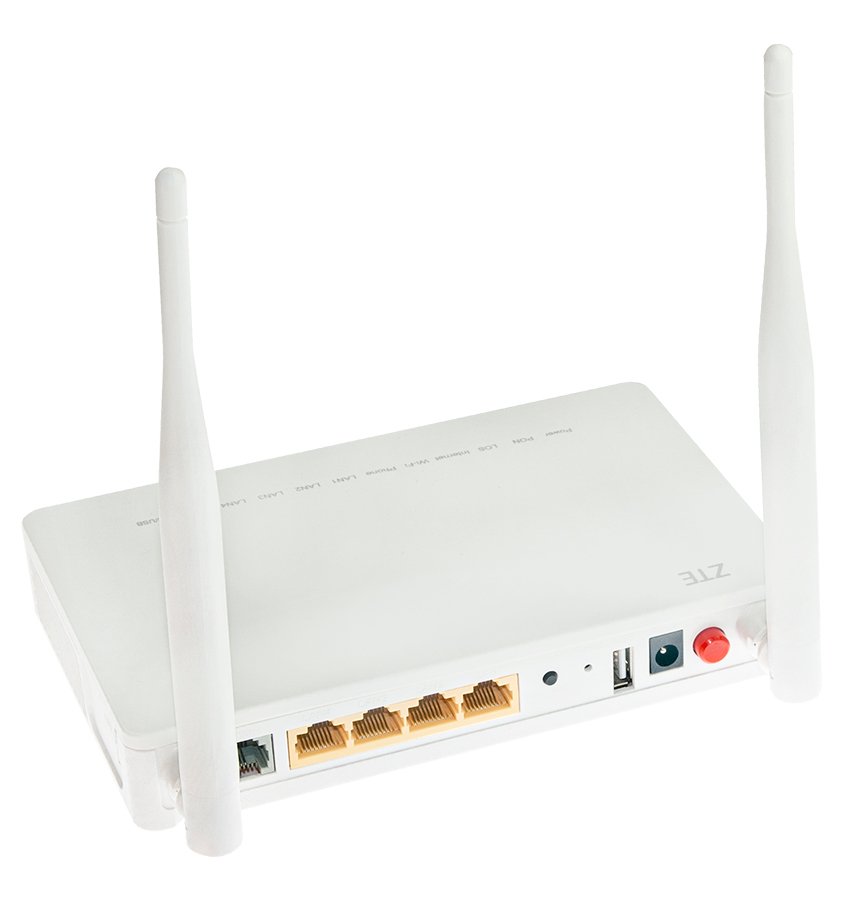

ZTE F660V9 XPON Router
The ZTE F660V9 is a high-performance XPON (GPON/EPON compatible) router designed for home and small office use. It delivers fast and stable internet connectivity through fiber optic networks.
The ZXHN F660 is a GPON optical network terminal (ONT) for home users. It supports fiber-to-the-home (FTTH) setups and offers both desktop and wall mounting options. It comes with 4GE LAN ports, one phone port, one USB port, one IEEE 802.11 b/g/n(2×2) Wi-Fi interface with two external antennas. Home users can easily access voice services, video services and many other kinds of high-speed broadband services by its enriched interfaces.
Specification |
|
| Interface | 1GE+3FE+1POTS+WIFI+USB 5dbi antennas |
| Optical port | 1 * GPON interface (SC/UPC) |
| Transmission Rate | 2.488Gbps downstream and 1.244Gbps upstream |
| Transmitting Optical Power | 0.5~5dBm |
| Receiving Sensitivity | Better than -28dBm |
| Antenna | 5dbi External antennas |
| Overload Optical Power | -8 dBm |
| Link distance | 0 ~ 20km max |
| Transmission Wavelength | Receiving: 1,490 nm Transmitting: 1,310 nm |
| Working environment | Operating temperature: 0ºC to 40ºC |
| Environment humidity: 5% to 95% | |
| System power supply | 12 V DC, 1 A |
| Dimensions | 220mm x 160 mm x 44 mm |
