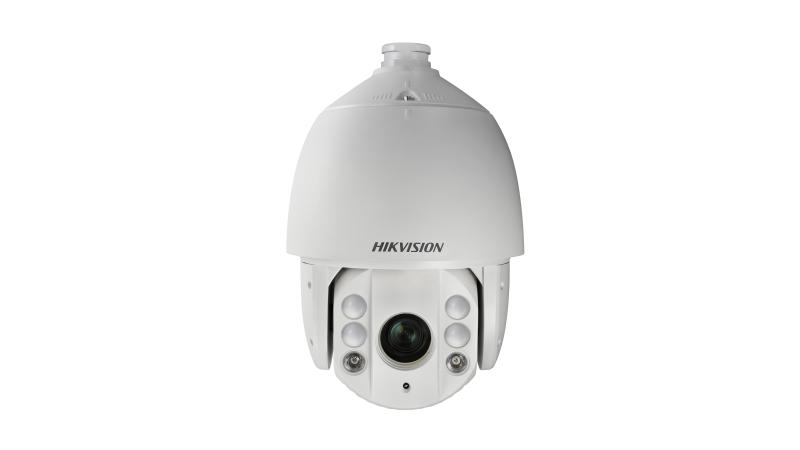

Hikvision Value Series DS-2DE7530IW-AE 5MP Outdoor PTZ Network Dome Camera with Night Vision description
Overview
The Value Series DS-2DE7530IW-AE 5MP Outdoor PTZ Network Dome Camera from Hikvision uses a 1/1.9″ progressive scan CMOS sensor to capture 2592 x 1944 resolution video at 30 fps. IR LEDs provide up to 492′ of night vision. The camera’s 5.9-177mm varifocal lens delivers a 51.3-2.7° field of view. The camera features endless panning, a -15 to 90° tilt range, and 30x optical zoom. Two-way audio is possible thanks to an audio I/O. A built-in memory card slot accepts microSD/SDHC/SDXC cards up to 128GB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
This PTZ camera is ONVIF-compliant for profiles S and G, making it compatible with a wide range of surveillance devices. It is housed in an IP66- and IK10-rated enclosure that is suitable for outdoor use in areas at risk of vandalism.
Specifications and Features
- IR cut filter enables day and night functionality
- Smart IR
- IR control
- H.265+, H.265, H.264+, H.264, and MJPEG video compression
- 30x optical and 16x digital zoom
- Zoom speed of 4.8 seconds
- 0.4 to 59″ working distance
- Auto, semi-auto, and manual focus modes
- 92 dB digital wide dynamic range
- Auto and manual gain control
- White balance modes include auto, manual, ATW, indoor, outdoor, daylight lamp, and sodium lamp
- 3D-DNR
- Defog
- Electronic image stabilization (EIS)
- Regional exposure and focus
- 8 programmable privacy masks
- Region of interest (ROI)
- Analytics include motion, video tampering, audio exception, intrusion, line crossing, region entrance, and region exiting detection
- Dual VCA and ANR smart recording
- Up to 32 users with 3 host levels (admin, operator, and user)
- Up to 20 channels in simultaneous live view
- 100M Ethernet port
- PoE injector included
- Audio I/O
- Two alarm inputs and one alarm output
- Alarm linkage includes preset, patrol scan, pattern scan, memory card video recording, trigger recording, E-map, VCA capture, upload to FTP, and send email
- Compatible with Internet Explorer 8 or higher, Chrome 31 or higher, Firefox 30 or higher, Safari 8.0 or higher, iOS, Android, iVMS-4200, iVMS-4500, and iVMS-5200
- Network-attached storage support
- CSA, FCC, CE, and cUL certified
- TVS 4000V lightning, surge, and voltage transient protection
PTZ Functions
- Endless panning
- 0.1 to 160°/s pan speed
- 240°/s preset pan speed
- -15 to 90° tilt range (auto flip)
- 0.1 to 120°/s tilt speed
- 200°/s preset tilt speed
- 300 presets
- 8 patrols (up to 32 presets per patrol)
- 4 pattern scans (record time over 10 minutes for each scan)
- Support for proportional zoom, power-off memory, PTZ status display, and preset freezing
- Park action includes preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, and panorama scan
- Scheduled task includes preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, and aux output
