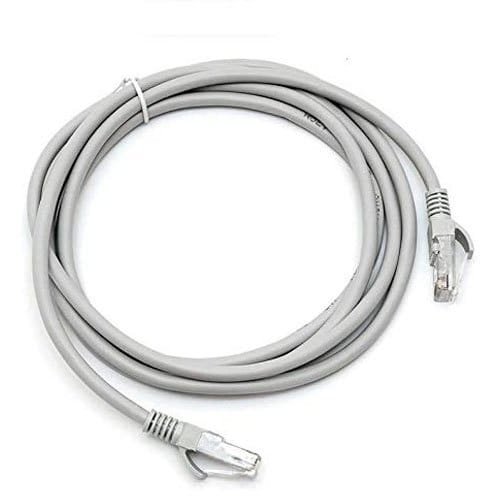

GIGANET Cat6A 3M Patch Cord GN-C6A-UTP-03M-GRY-26
Original price was: KSh 600.00.KSh 500.00Current price is: KSh 500.00. excl. VAT
- Category 6A (Cat6A) patch cord
- 3-metre cable length
- UTP (Unshielded Twisted Pair) construction
- 26 AWG stranded bare copper conductors for flexibility
- Supports 10 Gigabit Ethernet (10GBASE-T)
- 500 MHz bandwidth
- LSZH (Low Smoke Zero Halogen) grey jacket
- RJ45 to RJ45 connectors
GIGANET Cat6A 3M Patch Cord GN-C6A-UTP-03M-GRY-26
The GIGANET GN-C6A-UTP-03M-GR-26 is a Category 6A UTP (Unshielded Twisted Pair) patch cord designed for high-speed Ethernet connections in structured cabling systems. With a 3-metre length and 26 AWG stranded copper conductors, it offers the flexibility required for patching between network devices while supporting 10 Gigabit Ethernet applications.
The LSZH (Low Smoke Zero Halogen) jacket makes it suitable for offices, data centres, hospitals, and other indoor environments where fire safety is a priority.
Technical Specification
| Insulation | Material | HDPE |
| Diameter | 0.84 ±0.0 5 mm | |
| Conductor | Material | Stranded bare copper |
| Diameter | 7/0.1 6 ±0.005 mm /26 | |
| AWG: | 26 | |
| Out jacket | Material | PVC |
| Thickness | 0.5mm (Average) | |
| Diameter | 5.3 ± 0.3 mm | |
| Color | Blue/Yellow/White/Red/Green /Grey | |
| Electrical | Linear resistance | ≤ 14 Ω /100m |
| insulation resistance | ≥ 5000M Ω· km | |
| Dielectric Strength | DC.1kV.1min no breakdown | |
| Operating Temperature: | -20°C to 60°C | |
| Other | Cross filler | 4.0*0.45mm |
| Connectors | Plug | CAT 6 A UTP RJ45 Plug |
| Durability | >750 mating cycles | |
| Physical Characteristics | Insulation Tensile strength | ≥ 16MPa |
| Insulation Elongation ratio | ≥ 300% | |
| Jacket Tensile strength | ≥ 10 MPa | |
| Jacket Elongation ratio | ≥ 125% | |
| Standards | ISO/IEC 11801 TIA568.2D EN50173 IEC60603-7 RoHS 2011/65/EU REACH EC 1907/2006 | |
| Install info | Bending radius | ≥10×out diameter |
| working temperature | -20°C to 60°C | |
Applications
- Connecting PCs, laptops, and printers to network outlets
- Linking switches, routers, and patch panels
- Server rack and data centre patching
- IP phones and VoIP systems
- Wireless access points
- Network Attached Storage (NAS)
- High-speed enterprise and home networks supporting up to 10 Gbps.
