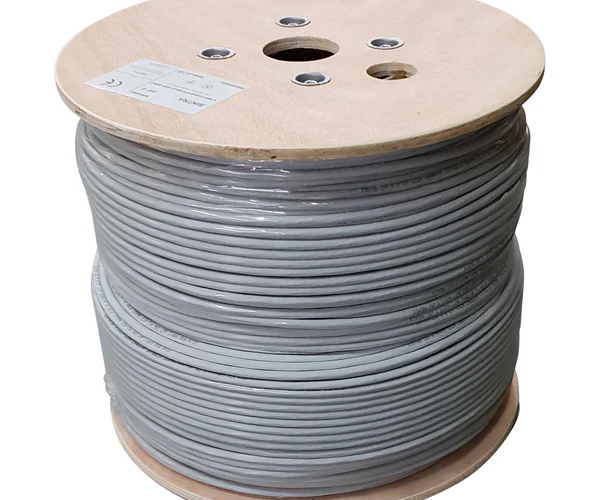

GIGANET GN-C6A-F/UTP-LSOH-GR Cable
Original price was: KSh 30,000.00.KSh 29,000.00Current price is: KSh 29,000.00. excl. VAT
Conductor: 23AWG
Length: 305M
Material: Solid bare Copper
Sheath: PVC
Performance: 500Mhz
Standards: ANSI/TIA-568.2-D, ISO/IEC 11801-1 and EN 50173-1
GIGANET GN-C6A-F/UTP-LSOH-GR Category 6A Solid F/UTP LSOH Grey Cable
The GIGANET GN-C6A-F/UTP-LSOH-GR Cable is a high-performance Category 6A shielded copper cable designed for structured cabling systems that support 10 Gigabit Ethernet (10GBASE-T). It features an overall foil shield (F/UTP) to minimize electromagnetic interference (EMI) and a Low Smoke Zero Halogen (LSOH) jacket, making it suitable for indoor environments where fire safety is important.
GIGANET GN-C6A-F/UTP-LSOH-GR Technical Specification
| Conductor | Material | Solid-Bare Copper | |||
| Nom.O.D.(mm) | 0.570 | UP | +0.005 | ||
| Down | -0.005 | ||||
| Insulation | Material | HDPE | |||
| Diameter | 1.12±0.05 mm | ||||
| Screening Material | Mylar+ AL/Mylar | ||||
| Sheath | Thickness | 0.60±0.05mm | |||
| External O.D. | 7.4±0.4 mm | ||||
| Surface | Clean,Frap,Satiation | ||||
| Material | LSOH(complies RoHS) | ||||
| Color | Purple/Violet | ||||
| Serial Port | Letter height | 3.0±0.3mm | |||
| Color | White | ||||
| Print error & Space | ≤±0.5% , 1m | ||||
| Core Color | 1 White- Blue /Blue | 2 White-Orange /Orange | |||
| 3 White- Green /Green | 4 White- Brown /Brown | ||||
| Rip-cord | Yes | Drain wire | Yes | ||
| Sheath Physical Properties | Before Aging Tensile Strength (Mpa) ≥10.0 Elongation(%) ≥350 | ||||
| Aging Period( (°C×hrs) 100°C×24h×10d | |||||
| After Aging Elongation(%) ≥300 | |||||
| Electrical Characteristics (20°C) | Impedance(Ω) 1.0-250.0MHz 100±15250.0-500.0MHz 100±22 | |
| 1.0-500.0MHz Delay Skew (ns/100m) ≤45 | ||
| Unbalanced-to-ground capacitance (pf/100m) max 330 | ||
| DC Resistance (Ω/100m) max 9.38 | ||
| DC Conductor Resistance Unbalance (%) max 5.0 | ||
| Operating Temperature | Minimum | Maximum |
| -10°C | 50 °C | |
| Storage Temperature | Minimum | Maximum |
| -10°C | 50°C | |
| Operation Temperature | Minimum | Maximum |
| -20°C | 75°C | |
| Standards | ISO/IEC11801,TIA-568-C.2IEC 60332-3-22 / IEC 60332-3-24 | |
| Packaging Length | (305±1.5)m | |
