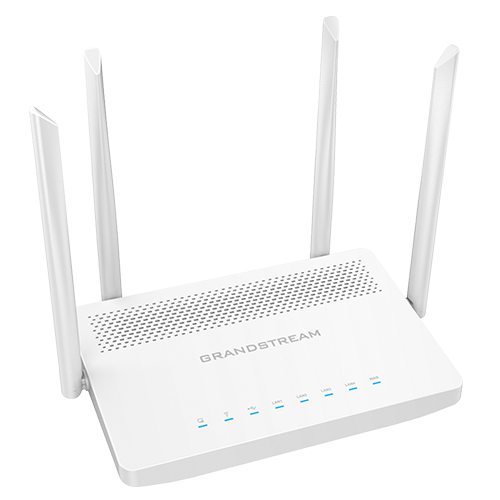

Grandstream GWN7052F Dual-Band Wi-Fi Fiberport Router

The Grandstream GWN7052F (and its variant GWN7052) is a business-grade dual-band Wi-Fi router designed to deliver reliable, high-performance wireless connectivity with integrated fiber uplink capability. It supports IEEE 802.11ac (Wi-Fi 5) with MU-MIMO, enabling aggregated wireless throughput of up to ~1.27 Gbps.

What sets the “F” variant apart is the inclusion of a fiber / SFP port for uplink, which allows you to connect to fiber backbone or longer distance links. This makes it especially attractive for deployments in offices, multi-dwelling units, or networks where fiber is part of the backbone infrastructure.

Features

• 1.27Gbps aggregate wireless throughput with 5x auto-sensing Gigabit ports
• Dual-band 2×2:2 MU-MIMO
• Built-in VPN support allows easy access to corporate networks for remote employees
• Supports 100 concurrent Wi-Fi client devices
• Supports Mesh networking with Grandstream access points to provide easy network expansion
• Powerful security features include guest network, network deny list, Antihacking secure boot & critical data/control lockdown via digital signatures, and more
• Rich firewall features including Anti-DoS, traffic rules, NAT, and ALG
• Secure cloud provisioning through GDMS Networking
• 1x Gigabit Ethernet WAN port and 4x Gigabit Ethernet LAN ports
• 1x Gigabit SFP WAN port, 4x Gigabit Ethernet ports (WAN/LAN configurable)

Grandstream GWN7052F Technical Specification

Memory and NAT Sessions

• 256MB RAM, 60K NAT sessions

NAT Routing & IPSec VPN Performance

• 1Gbps NAT routing
• 300Mbps IPSec VPN performance

Wi-Fi Standards

• IEEE 802.11 a/b/g/n/ac

Antennas

• 4 individual external antennas, 2 per band
• 2.4GHz, gain 5.0dBi
• 5 GHz, gain 5.0dBi

Wi-Fi Data Rates

• 5G:
  • IEEE 802.11ac: 6.5 Mbps to 867 Mbps
  • IEEE 802.11n: 6.5 Mbps to 300 Mbps
  • IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 2.4G:
  • IEEE 802.11n: 6.5 Mbps to 300 Mbps
  • IEEE 802.11b: 1, 2, 5.5, 11 Mbps
  • IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• *Actual throughput may vary depending on many factors including environmental conditions, distance between devices, radio interference in the operating environment and mix of devices in the network

Frequency Bands

• 2.4GHz radio: 2400 – 2483.5MHz
• 5GHz radio: 5150 – 5850MHz
• *Not all frequency bands can be used in all regions

Channel Bandwidth

• 2.4G: 20 and 40 MHz
• 5G: 20, 40 and 80 MHz

Wi-Fi and System Security

• WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device

MIMO

• 2×2:2 2.4GHz (MIMO)
• 2×2:2 5GHz (MU-MIMO)

Maximum TX Power

• 2.4G: 23dBm
• 5G: 24dBm
• *Maximum power varies by country, frequency band and MCS rate

Receiver Sensitivity

• 2.4G:
  • 802.11b: -96dBm@1Mbps, -88dBm@11Mbps;
  • 802.11g: -93dBm @6Mbps, -75dBm@54Mbps;
  • 802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz: -70dBm @MCS7;
• 5G:
  • 802.11a: -92dBm @6Mbps, -74dBm @54Mbps;
  • 802.11n: 20MHz: -73dBm @MCS7; 802.11n 40MHz: -70dBm @MCS7
  • 802.11ac 20MHz: -67dBm@MCS8; 802.11ac: HT40: -63dBm @MCS9; 802.11ac 80MHz: -59dBm @MCS9;

SSIDs

• 16 SSIDs total, 8 per radio (2.4ghz and 5 ghz)

Concurrent Clients

• Up to 100 concurrent clients

Network Interfaces

• 1x Gigabit SFP WAN port, 4x Gigabit Ethernet ports (WAN/LAN configurable)

Auxiliary Ports

• 1x USB 2.0 port, 1x Reset Pinhole

Mounting

• Desktop and wall mounting

LEDs

• 1 tri-color LED and 7x single-color LEDs for device tracking and status indication

Network Protocols

• IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM

QoS

• 802.11e/WMM, VLAN, TOS

Firewall

• DDNS, Port Forwarding, DMZ, UPnP, Anti-DoS, traffic rules, NAT, ALG

VPN

• Client: L2TP, PPTP, IPSec,
• Server: IPSec, OpenVPN

Network Management

• GWN7052F embedded controller can manage itself and up to 50 GWN APs; GWN.Cloud offers a free cloud management platform for unlimited GWN7052F routers and GWN APs (coming soon)

Power & Green Energy Efficiency

• Universal power adaptor included:
  • Input 100-240VAC 50-60Hz
  • Output: 12VDC 1A (12W);

Environmental

• Operation: 0°Cto 50°C
• Storage: -10°C to 60°C
• Humidity: 10% to 90% Non-condensing

Physical

• Unit Dimension without antennas: 205mm(L)x130mm(W)x35.5mm(H);
• Unit Dimension with antennas of 90°: 235.5mm(L)x145mm(W)x192mm(H); Unit Weight: 375g
• Entire Package Dimension: 250mm(L)x251.5mm(W)x56mm(H); Entire Package Weight: 740g

Package Content

• GWN7052F Router
• Universal Power Supply
• Network Cable
• Quick Installation Guide

Compliance

• FCC
• CE
• RCM
• IC
• UKCA
