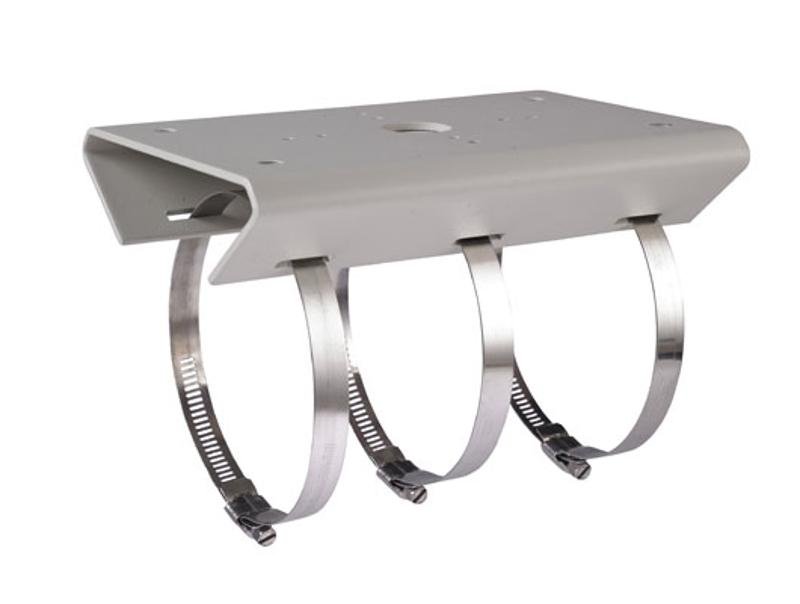

Hikvision DS-1275ZJ-HWB(60~300) Hoop & Bracket

The Hikvision DS-1275ZJ-HWB/600mm is a hoop and bracket mounting kit designed for installing Hikvision speed domes, PTZ cameras, or junction boxes on walls, ceilings, or poles. The “600mm” refers to the length of the mounting hoop, providing flexibility in positioning the camera.

Key Features:

• Material: High-strength metal (aluminum or steel) with anti-corrosion coating for outdoor durability.

• Compatibility:

  • Hikvision speed domes (e.g., DS-2DF6XXX, DS-2DE7XXX series).

  • Junction boxes like DS-1275ZJ-MB.

• Mounting Types:

  • Wall/Pole Mounting: Adjustable hoop allows for flexible camera positioning.

  • Ceiling Mounting: Can be used with additional accessories.

• Weatherproof: IP66 or higher rating for rain, dust, and extreme temperatures.

• Cable Management: Includes conduit entries for secure cable routing.

Installation Steps:

• Check Compatibility – Ensure the bracket matches your camera model (e.g., DS-2DF8236IX-AEL(T5)).

• Attach Hoop to Mounting Surface:

  • For wall/pole mounting, secure the base bracket with screws.

  • For ceiling mounting, use the included hardware.

• Mount Camera to Hoop:

  • Fix the camera to the hoop using the provided bolts.

  • Adjust the angle before tightening.

• Route Cables:

  • Pass cables through the hoop’s conduit entry points.

  • Seal with waterproof tape or glands if needed.

Specification

Note

• The bracket should be installed on the cross
• The cross bar must be capable of supporting at least 3 times as much as the total weight of traffic unit and the
