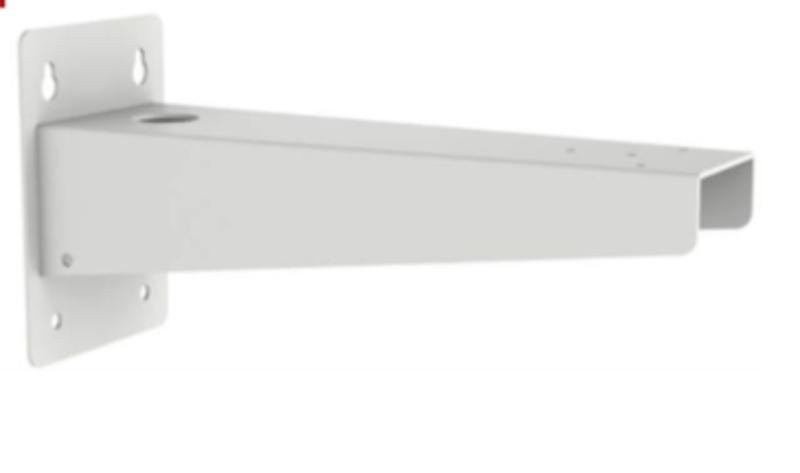

Hikvision DS-1701ZJ/HWB Hoop & Wall mount bracket

The Hikvision DS-1701ZJ/HWB is a hoop and wall mount bracket designed for securely installing Hikvision PTZ cameras, speed domes, or junction boxes on walls, poles, or ceilings. This bracket provides flexibility in camera positioning while ensuring stability in outdoor environments.

Key Features

 Material: Heavy-duty metal (steel/aluminum) with anti-corrosion coating for outdoor use.
Compatible Models:

• PTZ/Speed Domes: DS-2DF6XXX, DS-2DE7XXX series (e.g., DS-2DF8425IX-AEL(T5)).

• Junction Boxes: DS-1701ZJ-MB (if used for housing power/network equipment).

• Wall Mounting (standard vertical/horizontal surfaces).

• Pole Mounting (adjustable for different diameters).

• Ceiling Mounting (may require additional hardware).

Installation Guide:

• Check Compatibility – Verify the bracket fits your camera/junction box model.

• Mounting Surface Prep – Ensure the wall/pole is sturdy and leveled.

• Attach Bracket:

  • For walls, drill holes and secure with anchor bolts.

  • For poles, use the clamping mechanism (adjust for diameter).

• Install Camera/Junction Box:

  • Fix the device to the hoop using provided screws.

  • Adjust tilt/angle before final tightening.

• Route Cables:

  • Pass cables through the hoop’s entry points.

  • Seal with waterproof tape/glands if exposed to weather.

Applications

• Outdoor PTZ Cameras: Ideal for traffic monitoring, perimeter security, or large-area surveillance.

• Junction Box Mounting: Protects power supplies, PoE switches, or surge protectors.

• Industrial Sites: Vibration-resistant design for harsh environments.
