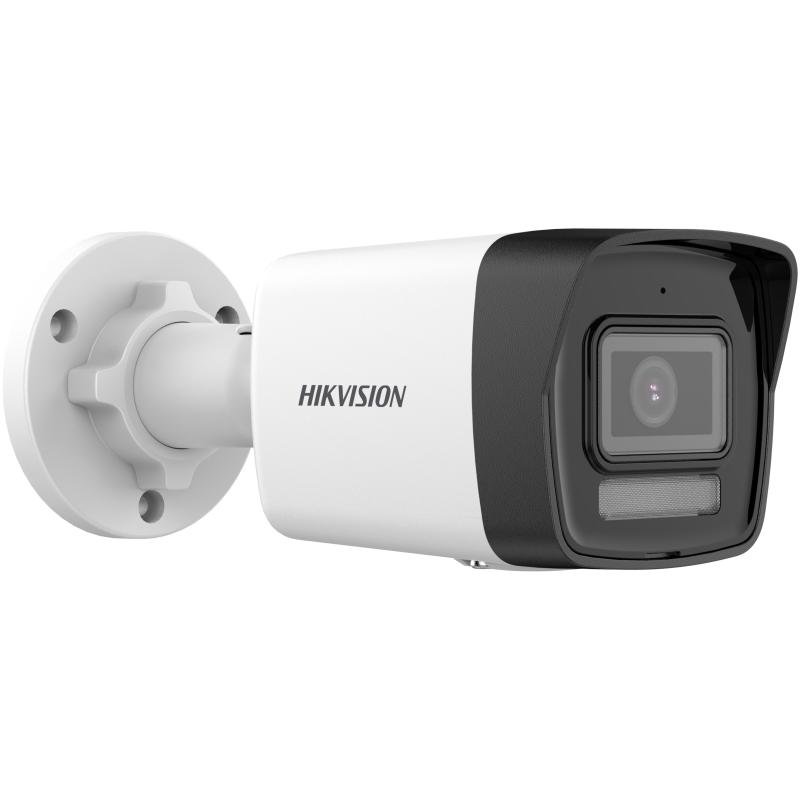

Hikvision DS-2CD3021G2E-LIU(4mm) 2 MP Dual Light Motion 2.0 Fixed Bullet Network Camera
The Hikvision DS-2CD3021G2E-LIU is a 2MP (1080p) bullet camera designed for basic outdoor surveillance, offering reliable performance with essential features.
Specification |
|
Camera | |
Image Sensor | 1/2.9″ Progressive Scan CMOS |
Max. Resolution | 1920 Ă— 1080 |
Min. Illumination | Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR |
Shutter Time | 1/3 s to 1/100,000 s |
Day & Night | IR cut filter |
Angle Adjustment | Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° |
Lens |
|
Lens Type | Fixed focal lens, 2.8 and 4 mm optional |
Focal Length & FOV | 2.8 mm, horizontal FOV 99.5°, vertical FOV 55.5°, diagonal FOV 116.1°4 mm, horizontal FOV 76.8°, vertical FOV 41.5°, diagonal FOV 90.8° |
Lens Mount | M12 |
Iris Type | Fixed |
Aperture | F2.0 |
DORI | |
DORI | 2.8 mm, D: 59 m, O: 23 m, R: 11 m, I: 5 m4 mm, D: 79 m, O: 31 m, R: 15 m, I: 7 m |
Illuminator | |
Supplement Light Type | IR, White Light |
Supplement Light Range | Up to 30 m |
Smart Supplement Light | Yes |
IR Wavelength | 850 nm |
Video |
|
Main Stream | 50 Hz: 25 fps (1920 Ă— 1080, 1280 Ă— 720)60 Hz: 30 fps (1920 Ă— 1080, 1280 Ă— 720) |
Sub-Stream | 50 Hz: 25 fps (1280 Ă— 720, 640 Ă— 480, 640 Ă— 360)60 Hz: 30 fps (1280 Ă— 720, 640 Ă— 480, 640 Ă— 360) |
Video Compression | Main stream: H.265+/H.265/H.264+/H.264,Sub-stream: H.265/H.264/MJPEG |
Video Bit Rate | 32 Kbps to 8 Mbps |
H.264 Type | Baseline Profile, Main Profile, High Profile |
H.265 Type | Main Profile |
Bit Rate Control | CBR, VBR |
Region of Interest (ROI) | 1 fixed region for main stream and sub-stream |
Audio |
|
Audio Type | Mono sound |
Environment Noise Filtering | Yes |
Audio Sampling Rate | 8 kHz/16 kHz |
Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps(MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
Network |
|
Security | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, basic and digest authentication for HTTP/HTTPS, WSSE anddigest authentication for Open Network Video Interface, RTP/RTSP over HTTPS,
security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address) |
Simultaneous Live View | Up to 6 channels |
API | Open Network Video Interface (Profile S, Profile G), ISAPI, SDK |
Protocols | TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, IPv4, IPv6, UDP, QoS,FTP, SMTP, HTTPS, DDNS, UPnP, 802.1X |
User/Host | Up to 32 users3 user levels: administrator, operator, and user |
Client | iVMS-4200, Hik-Connect |
Web Browser | Plug-in required live view: IE 10, IE 11,Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
Image |
|
Wide Dynamic Range (WDR) | Digital WDR |
SNR | ≥ 52 dB |
Day/Night Switch | Day, Night, Auto, Schedule |
Image Enhancement | BLC, HLC, 3D DNR |
Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance,adjustable by client software or web browser |
Privacy Mask | 4 programmable polygon privacy masks |
Interface |
|
Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
Event | |
Basic Event | Motion detection (support alarm triggering by specified target types (human andvehicle)), video tampering alarm, exception |
Smart Event | Line crossing detection, intrusion detection |
Linkage | Upload to FTP, send email, notify surveillance center, trigger capture |
General |
|
Power | 12 VDC ± 25%, 0.4 A, max. 5 W, Ă˜5.5 mm coaxial power plug, reverse polarity protection,PoE: IEEE 802.3af, Class 3, max. 6.5 W |
Material | Front cover: metal, body: plastic, bracket: plastic |
Dimension | 170.8 mm Ă— 66 mm Ă— 69.1 mm (6.7″ Ă— 2.6″ Ă— 2.7″) |
Package Dimension | 216 mm Ă— 121 mm Ă— 118 mm (8.5″ Ă— 4.8″ Ă— 4.6″) |
Weight | Approx. 270 g (0.6 lb.) |
With Package Weight | Approx. 481 g (1.1 lb.) |
Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
Startup and OperatingConditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
Language | English, Turkish, Polish, Romanian, Czech, Slovak, Traditional Chinese, Thai,Vietnamese, Croatian, Slovenian, Serbian, Ukrainian |
General Function | Heartbeat, mirror, password reset via email, pixel counter, password protection,anti-banding |
Approval |
|
EMC | CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN50130-4: 2011 +A1: 2014, IC: ICES-003: Issue 7 |
Safety |
UL: UL 62368-1,CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005 |
Environment | CE-RoHS: 2011/65/EU |
Protection | IP67: IEC 60529-2013 |
