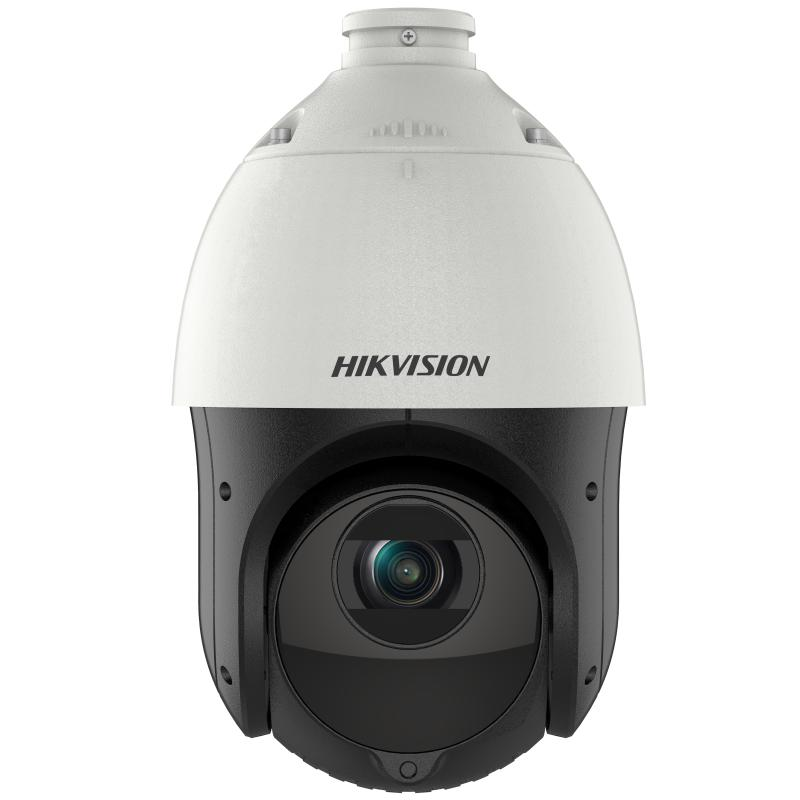

Hikvision DS-2DE4215IW-DE (S6) 2 MP IP PTZ camera WDR description

Camera

• Image Sensor1/2.8″ progressive scan CMOS
• Min. Illumination0 Lux with IR;color: 0.005Lux @ (F1.6，AGC ON) ;B/W: 0.001Lux @ (F1.6, AGC ON)
• Shutter Speed1 s to 1/30,000 s
• Slow Shutteryes
• Focussemi-auto;manual;auto
• Day & NightICR
• Day/Night Switchday, night, auto, scheduled-switch
• BLCyes
• WDR120 dB WDR
• HLCyes
• 3D DNRyes
• Defogyes
• EISno
• Regional Exposureyes
• Regional Focusyes
• Image Settingssaturation;brightness;contrast;sharpness
• Image Parameters Switchyes
• White BalanceMWB;indoor;outdoor;fluorescent lamp;sodium lamp;ATW;auto;Locked WB
• Digital Zoom16x
• Optical Zoom15×
• Privacy Maskup to 24 masks;mask color configurable
• SNR＞52dB

• Lens

• Focal Length5 mm to 75 mm, 15× Optical
• Zoom SpeedApprox. 2.3 s
• FOV

  Horizontal field of view: 57.6° to 4° (wide-tele),

  Vertical field of view: 34.4° to 2.3° (wide-tele),

  Diagonal field of view: 64.5° to 4.6° (wide-tele)

• ApertureF1.6

• Illuminator

• IR Distance100 m

• PTZ

• Movement Range (Pan)360°
• Movement Range (Tilt)-15° to 90° (auto flip)
• Pan Speedpan speed: configurable from 0.1° to 80°/s; preset speed: 80°/s
• Tilt Speedtilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s
• Proportional Zoomyes
• Presets300
• Patrol Scan8 patrols, up to 32 presets for each patrol
• Pattern Scan4 pattern scans
• Power-Off Memoryyes
• Park Actionpreset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan
• 3D Positioningyes
• PTZ Status Displayyes
• Preset Freezingyes
• Scheduled Taskpreset;auto scan;random scan;frame scan;patrol scan;pattern scan;panorama scan;tilt scan;dome reboot;dome adjust;aux output

• Video

• Max. Resolution1920 × 1080
• Stream Typemain stream;sub-stream;third stream
• Main Stream

  50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720)

  60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)

• Sub-Stream

  50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)

  60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)

• Third Stream

  50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)

  60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

• Video CompressionH.265;H.264;MJPEG
• Video Bit Rate32 kbps to 16384 kbps
• H.264 Typebaseline profile;main profile;high profile
• H.265 Typemain profile
• H.264+yes
• H.265+yes
• SVCyes
• ROIfixed region;main stream, sub-stream and third stream respectively support eight fixed areas

• Audio

• Audio CompressionG.711alaw;G.711ulaw;G.722.1;G.726;MP2L2;PCM
• Audio Bit RateMP2L2: 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps, 192 kbps
• Audio Sampling RateMP2L2: 16 kHz, 32 kHz, 48 kHz;PCM: 8 kHz, 16 kHz, 32 kHz, 48 kHz
• Environment Noise Filteringyes

• Smart Features

• Basic Eventmotion detection;alarm input;alarm output;video tampering alarm;exception
• Smart Eventintrusion detection;line crossing detection;region entrance detection;region exiting detection;unattended baggage detection;object removal detection;audio exception detection;face detection
• Smart RecordANR;Dual-VCA
• Alarm Linkagememory card video recording;alarm output;sending email;notify surveillance center; upload to FTP;NAS video recording

• Network

• ProtocolsIPv4/IPv6,HTTP,HTTPS,802.1X,QoS,FTP,SMTP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP/IP,UDP,IGMP,ICMP,DHCP,PPPoE,Bonjour,ISUP,WebSocket,WebSockets
• Network StorageNAS (NFS, SMB/ CIFS)
• APIISAPI; Hikvision SDK;Third-party management platform;Open-ended API;Hik-Connect;ISUP;Open Network Video Interface;CGI
• Simultaneous Live View20
• User/Host32
• Security MeasuresAuthenticated username and password;MAC address binding;HTTPS encryption;802.1X authenticated access;IP address filter
• ClientiVMS-4200;Hik-Connect
• Web BrowserIE10-11, Chrome 57+, Firefox 52+, Safari 12+

• Interface

• Communication InterfaceRJ45, self-adaptive 10M/100M Ethernet port
• On-Board Storagesupport microSD/microSDHC/microSDXC cards;up to 256 GB
• Alarm Input1 alarm input
• Alarm Output1 alarm output
• Audio Input1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%
• Audio Output1 audio output, line level, impedance: 600 Ω

• General

• Power12 VDC;PoE (802.3at)
• Power Consumption And CurrentMax. 18 W, including max. 1.6 W for heater and 9 W for IR
• Operating Conditions-30℃ to 65℃ (-22°F to 149°F) ;humidity lower than 90%RH
• Resetyes
• Demistyes
• MaterialADC12
• DimensionsØ 164.5 mm × 290 mm (Ø 6.48″ × 11.42″)
• Approx. 2 kg (4.41 lb.)

• Approval

• ProtectionIP66 Standard, 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
