Hikvision DS-2SE3C404MWG-E/14 TandemVu 4MP+4MP PTZ
Original price was: KSh 24,000.00.KSh 23,000.00Current price is: KSh 23,000.00. excl. VAT
- Captures a large area and great details at the same time
- High quality imaging with 4 MP resolution
- Excellent low-light performance with powered-by-DarkFighter technology
- Secures an expansive area with 4Ă— optical zoom and 16Ă— digital zoom
- Supports WDR, HLC, BLC, 3D DNR, defog, regional exposure, regional focus
- Supports 12V DC & PoE+
- Support Human and Vehicle Detection

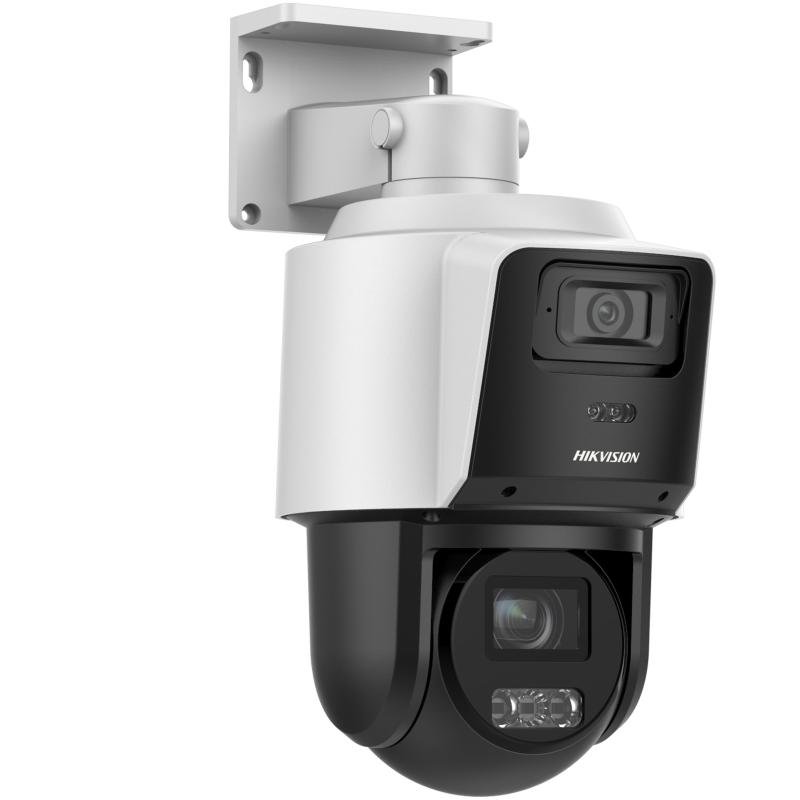

Hikvision DS-2SE3C404MWG-E/14 TandemVu 4MP+4MP POE PTZ Camera
The Hikvision DS-2SE3C404MWG-E/14 is a high-performance TandemVu PTZ camera that combines dual 4MP sensors in one unit for comprehensive surveillance coverage. Hikvision 4 Ă— IR Network Speed Dome adopts 1/2.8″ progressive scan CMOS chip. With the 4 Ă— optical zoom lens, the camera offers more details over expansive areas.
Specification |
|
|
Camera |
|
|
Image Sensor |
[Bullet channel]: 1/2.8″ Progressive Scan CMOS; [PTZ channel]: 1/2.8″ progressive scan
CMOS |
|
Min. Illumination |
[Bullet channel]: Color: 0.01 Lux @ (F1.6, AGC ON)，B/W: 0.005 Lux @ (F1.6 ，AGC ON),
0 Lux with IR; [PTZ channel]: Color: 0.01 Lux @ (F1.5, AGC ON), B/W: 0.005Lux @ (F1.5, AGC ON), 0Lux with IR |
|
Shutter Speed |
1 s to 1/30,000 s |
|
Slow Shutter |
yes |
|
Day & Night |
ICR |
|
Zoom |
[PTZ channel] 4 Ă— optical, 16 Ă— digital |
|
Max. Resolution |
[Bullet channel] 2560 Ă— 1440, [PTZ channel] 2560 Ă— 1440 |
Lens |
|
|
Focus |
auto,manual,semi-auto |
|
Focal Length |
[Bullet channel]: 2.8 mm; [PTZ channel]: 2.8 to 12 mm, 4 Ă— optical |
|
Zoom Speed |
[PTZÂ channel]: approx. 3.3 s |
|
FOV |
[Bullet channel] horizontal field of view: 114.9°, vertical field of view: 62.4°, diagonal field of view: 130.7°, [PTZ channel] horizontal field of view: 98° to 34.2°, vertical field
of view: 52° to 19.2°, diagonal field of view: 111° to 39° |
|
Aperture |
[Bullet channel]: F1.6; [PTZ channel]: F1.5 to F2.9 |
|
Illuminator |
|
|
Supplement Light Type |
[Bullet channel] Hybrid (IR and White Light), [PTZ channel] IR |
|
Smart Supplement Light |
Yes |
|
Supplement Light Range |
[PTZ channel]: IR Distance: up to 40 m; [Bullet channel]: IR Distance: up to 30 m; White Light Distance: 30 m |
PTZ |
|
|
Movement Range (Pan) |
0° to 350° |
|
Movement Range (Tilt) |
[Bullet channel] 7° to 17° (manually adjust), [PTZ channel] -5° to 90° |
|
Pan Speed |
pan speed: configurable from 0.1° to 30°/s; preset speed: 30°/s |
|
Tilt Speed |
tilt speed: configurable from 0.1° to 30°/s, preset speed 30°/s |
|
Proportional Pan |
yes |
|
Presets |
300 |
|
Patrol Scan |
8 patrols, up to 32 presets for each patrol |
|
Power-off Memory |
yes |
|
Park Action |
preset,patrol scan |
|
3D Positioning |
yes |
|
PTZ Status Display |
yes |
|
Preset Freezing |
yes |
|
Scheduled Task |
dome reboot,preset,patrol scan,dome adjust,aux output |
Video |
|
|
Region of Interest (ROI) |
1 fixed regions for main stream |
|
Main Stream |
[Bullet channel]:
50 Hz: 25 fps (2560 Ă— 1440, 1920 Ă— 1080, 1280 Ă— 720) 60 Hz: 30 fps (2560 Ă— 1440, 1920 Ă— 1080, 1280 Ă— 720) [PTZ channel]:50 Hz: 25 fps (2560 Ă— 1440, 1920 Ă— 1080, 1280 Ă— 720) 60 Hz: 30 fps (2560 Ă— 1440, 1920 Ă— 1080, 1280 Ă— 720) |
|
Sub-Stream |
[Bullet channel]:
50 Hz: 25 fps (640 Ă— 480, 640 Ă— 360) 60 Hz: 30 fps (640 Ă— 480, 640 Ă— 360) [PTZ channel]:50 Hz: 25 fps (640 Ă— 480, 640 Ă— 360) 60 Hz: 30 fps (640 Ă— 480, 640 Ă— 360) |
|
Third Stream |
[Bullet channel]:
50 Hz: 25 fps (1280 Ă— 720，640 Ă— 480，640 Ă— 360) 60 Hz: 30 fps (1280 Ă— 720，640 Ă— 480，640 Ă— 360) [PTZ channel]:50 Hz: 25 fps (1280 Ă— 720，640 Ă— 480，640 Ă— 360) 60 Hz: 30 fps (1280 Ă— 720，640 Ă— 480，640 Ă— 360) |
|
Video Compression |
H.265,H.264,MJPEG |
|
Video Bit Rate |
32 kbps to 16384 kbps |
|
H.264 Type |
main profile,baseline profile,high profile |
|
H.265 Type |
main profile |
|
Scalable Video Coding (SVC) |
yes |
Audio |
|
|
Audio Compression |
G.711,G.722.1,G.726,MP2L2,PCM,MP3,AAC |
|
Audio Bit Rate |
MP2L2: 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps; AAC : 16 kbps, 32 kbps, 64 kbps; MP3: 8 kbps, 16 kbps, 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps |
|
Audio Sampling Rate |
MP2L2: 16 kHz,AAC-LC: 16 kHz,PCM: 8 kHz, 16 kHz,MP3: 8 kHz, 16 kHz |
|
Environment Noise Filtering |
yes |
Network |
|
|
API |
ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP |
|
Network Storage |
NAS (NFS, SMB/ CIFS),ANR, ANR |
|
Protocols |
TCP/IP,SMTP,RTSP,FTP,WebSockets,IGMP,Web Socket,Qos,RTCP,HTTPS,PPPoE,SNMP,N TP,RTP,UDP,DNS,HTTP,DHCP,Bonjour,802.1x,IPv4/IPv6,DDNS,ICMP,UPnP |
|
Simultaneous Live View |
20 |
|
User/Host |
32 |
|
Security |
802.1X authenticated access,MAC address binding,Authenti cated username and password,IP address filter,HTTPS encryption |
|
Client |
iVMS-4200,Hik-Connect |
|
Web Browser |
IE8+, Chrome31 to 44, Firefox 30 to 51, Safari8.0+ |
Image |
|
|
Image Settings |
sharpness, saturation, brightness, contrast |
|
Wide Dynamic Range (WDR) |
120 dB |
|
SNR |
≥ 52 dB |
|
Defog |
Digital defog |
|
Day/Night Switch |
day, night, auto, scheduled-switch |
|
Image Enhancement |
BLC,HLC,3D DNR |
|
Privacy Mask |
[Bullet channel] 24 programmable polygon privacy masks, [PTZ channel] 24
programmable polygon privacy masks |
|
Regional Focus |
[Bullet channel] No, [PTZ channel] Yes |
|
Regional Exposure |
[Bullet channel] No, [PTZ channel] Yes |
|
Image Parameters Switch |
Yes |
Interface |
|
|
Built-in Microphone |
1 built-in microphone |
|
Built-in Speaker |
1 built-in speaker |
|
Ethernet Interface |
RJ45, self-adaptive 10M/100M Ethernet port |
|
On-board Storage |
Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 512 GB |
|
Reset |
yes |
Event |
|
|
Basic Event |
Motion detection,video tampering alarm,exception,alarm input and output |
|
Smart Event |
Line crossing detection,intrusion detection,region entrance detection,region exiting detection,audio exception detection |
|
Linkage |
[Bullet channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, and trigger recording, [PTZ channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output,
trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan) |
General |
|
|
General Function |
mirror,watermark,IP address filter,password protection |
|
Power |
12 VDC, max. 13.5 W,PoE+ |
|
Operating Condition |
-30 °C to 50 °C (-22 °F to 122 °F). Humidity 95% or less (non-condensing) |
|
Demist |
Demist by heating the glass |
|
Material |
PC |
|
Dimension |
311.5 mm Ă— 223.5 mm Ă— 156 mm (12.26″ Ă— 8.80″ Ă— 6.14″) |
|
Weight |
Approx. 1.37 kg (3.02 lb.) |
|
Approval |
|
|
Protection |
IP66 Standard, Surge Protection and Voltage Transient Protection |
