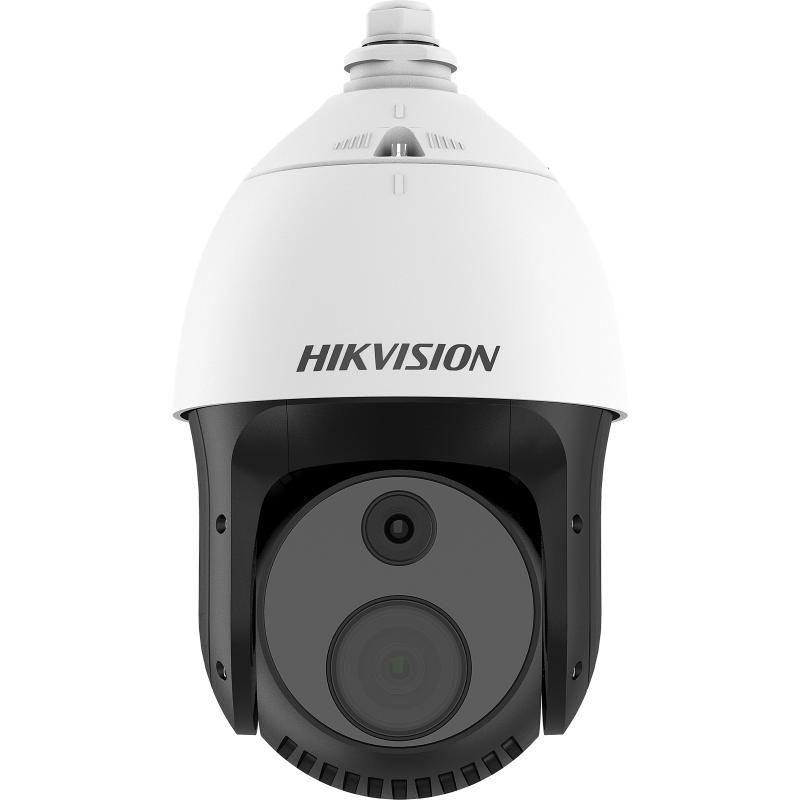

Hikvision DS-2TD4228T-10/S2 Thermography Thermal Camera
Original price was: KSh 310,000.00.KSh 308,000.00Current price is: KSh 308,000.00. excl. VAT
- Perimeter Protection function: line crossing, intrusion, region entrance and exit
- Temperature exception alarm for fire prevention, -20 °C to 550 °C (-4 °F to 1022 °F), Max. (± 2 °C, ± 2%)
- Fire detection algorithm
- 256 × 192 (the resolution of output image is 1280 × 720) resolution 12 μm, VOx UFPA, NETD ≤ 35 mK (25 °C, F# = 1.0)
- Image processing technology: Liner, histogram, and self-adaptive thermal AGC mode, DDE, 3D DNR
- High quality detector with 10 years warranty
- Smart tracking: Panorama tracking, Event tracking and Multi-scene patrol tracking
- Smart tracking linkage: thermal view and optical view
- Smoke detection for fire prevention
Hikvision DS-2TD4228T-10/S2 Thermographic Thermal & Optical Bi-spectrum Network Speed Dome
Hikvision DS-2TD4228T-10/S2 Thermal & Optical Bi-spectrum Network Speed Dome is applied to manufacture process supervision of pyrophoric materials in factories, electric substation, and hydropower station. The accurate temperature measurement system sends you alarms to protect you from property loss.
Specification
| Thermal Module | |
| Image Sensor | Vanadium Oxide Uncooled Focal Plane Arrays |
| Resolution | 256 × 192 (the resolution of output image is 1280 × 720) |
| Pixel Interval | 12 μm |
| Response Waveband | 8 μm to 14 μm |
| NETD | Less than 35 mK (@25 °C,F#=1.0) |
| Focal Length | 10 mm |
| Focus Mode | Athermalized |
| IFOV | 1.2 mrad |
| Aperture | F1.0 |
| Field of View | 18.1°×13.6° (H × V) |
| Min. Focusing Distance | 1.5m |
| Digital Zoom | ×2, ×4, ×8 |
Optical Module |
|
| Image Sensor | 1/2.8″ Progressive Scan CMOS |
| Resolution | 2688 × 1520, 4 MP |
| Min. Illumination | Color: 0.05 Lux @(F1.2，AGC ON), B/W: 0.01 Lux @(F1.2，AGC ON) |
| Field of View | 58.8° × 34.4° (H × V) to 2.18° × 1.2° (H × V) |
| Focal Length | 4.8-153 mm, 32x |
| Aperture (Range) | F1.2-F4.4 |
| Focus Mode | Auto/Semi-auto/Manual |
| Shutter Speed | 1s to 1/100,000s |
| WDR | 120 dB |
| Optical Defog | No, support algorithmic defog |
| Image Effect | |
| Picture in Picture | Display partial image of thermal channel on the full screen of optical channel |
| Target Coloration | Supported in white hot and black hot mode. |
PTZ |
|
| Movement Range | Pan: 360° Continuous Rotate; Tilt: From -5° to + 90° (auto flip) |
| Pan Speed | Configurable, From 0.1°/s to 200°/s, Preset Speed: 240°/s |
| Tilt Speed | Configurable, From 0.1°/s to 105°/s, Preset Speed: 200°/s |
| Proportional Zoom | Yes |
| Presets | 300 in total, 273 are configurable. |
| Patrol Scan | 8; Up to 32 Presets Per Patrol |
| Pattern Scan | 4; More Than 10 Minutes Per Pattern |
| Power Off Memory | Yes |
| Park | Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/FrameScan/Panorama Scan |
| PT Status | Turn On/Turn Off |
| Scheduled Task | Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/FrameScan/Panorama Scan/Doom Reboot/Doom Adjust/Aux Output |
| Illuminator | |
| IR Distance | Up to 100m |
| IR Intensity and Angle | Automatically adjusted |
Smart Function |
|
| VCA | Support 4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and RegionExiting), up to 10 scenes and 8 VCA rules for each scene |
| Temperature Measurement | Support 3 temperature measurement rule types, 273 presets as scene, 21 rulesof each scene (10 points, 10 areas, and 1 line) |
| Temperature Range | -20 °C to 550 °C (-4 °F to 1022 °F) |
| Temperature Accuracy | Max (±2 °C, ±2 %) |
| Fire Detection | Dynamic fire detection, up to 10 fire points detectable. |
Video and Audio |
|
|
Main Stream |
Optical channel50 Hz:25 fps (2688 × 1520，1920×1080, 1280×960, 1280×720)
60 Hz:30 fps (2688 × 1520，1920×1080, 1280×960, 1280×720) Thermal channel 25 fps (1280×720, 704 × 576, 640 ×512, 256× 192) |
|
Sub-stream |
Optical channel50 Hz:25 fps (704 × 576, 352 × 288)
60 Hz:30 fps (704 × 576, 352 × 288) Thermal channel 25 fps (704 × 576, 640 ×512, 256 × 192) |
| Video Compression | Main stream: H.265+/H.265/H.264+/ H.264Sub-stream: H.265/H.264/MJPEG |
| Audio Compression | G .711u/G.711a/G.722.1/MP2L2/G.726/PCM |
Network |
|
| Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS,NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE |
| Network Storage | MicroSD/SDHC/SDXC card (up to 256 G) local storage, and NAS (NFS,SMB/CIFS), auto network replenishment (ANR) |
| API | ISAPI, HIKVISION SDK, third-party management platform, ONVIF (Profile S,Profile G, Profile T) |
| Simultaneous Live View | Up to 20 channels |
| User/Host level | Up to 32 users, 3 levels: Administrator, Operator, User |
| Security | User authentication (ID and password), MAC address binding, HTTPSencryption, IEEE 802.1x access control, IP address filtering |
| Client | iVMS-4200, Hik-Connect |
| Web Browser | Live view (plug-in allowed) : Internet Explorer 11Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 + Local service : Chrome 57.0+, Firefox 52.0 + |
Interface |
|
| Alarm Input | 7-ch inputs (0-3.3 VDC) |
| Alarm Output | 2-ch relay outputs, alarm response actions configurable |
| Alarm Action | Preset/Patrol Scan/Pattern Scan/SD Card Record/Relay Output/Smartcapture/FTP upload/Email linkage |
| Audio Input | LINE_IN Input/MIC Input; Peak: From 2 to 2.4V[p-p]; Output Impedance:1KΩ±10% |
| Audio Output | Linear Level; Impedance: 600 Ω |
| Communication Interface | 1, RJ45 10 M/100 M Self-adaptive Ethernet interface.1, RS-485 interface |
| Analog Video Output | 1.0 V [p-p]/75 Ω |
General |
|
|
Web Client Language |
32 languagesEnglish, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional
Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil) |
|
Power Supply |
24VAC ± 20%, two-core terminal block 36VDC ± 20%, two-core terminal block 48VDC ± 20%, two-core terminal blockHi-PoE |
| Power Consumption | Max 30 W |
| WorkingTemperature/Humidity | -40°C to 70°C (-40°F to 158°F), 90% or less |
| Protection Level | IP66 Standard; TVS 6000V Lightning Protection, Surge Protection and VoltageTransient Protection |
| Dimension | 305 mm × 185 mm × 163 mm (12.01 ” × 7.28 ” × 6.42 “) |
| Weight | Approx. 3.9Kg (8.6lb) |
| Detection Range Table | |
| VCA Range for Humans | 80 m |
| VCA Range for Vehicles | 240 m |
