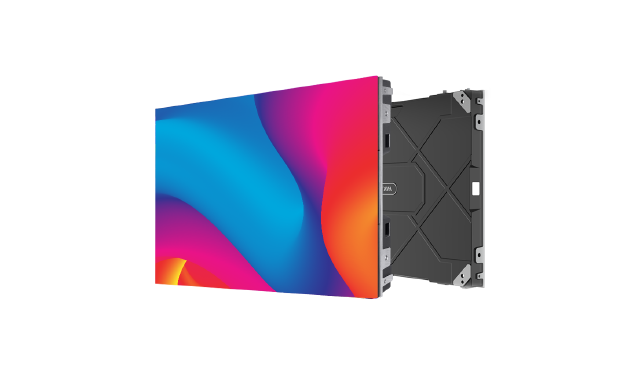

Hikvision DS-D4240CO-1BAB P4 Outdoor Fixel LED Display Unit
Original price was: KSh 230,000.00.KSh 228,000.00Current price is: KSh 228,000.00. excl. VAT
- Widely applied in outdoor permanent advertising scenes
- High-precision diecasting aluminium structure design ensures a thin and highly flat cabinet
- Thin and light cabinet with the die-casting aluminum design
- With multiple ventilation modes working together inside the cabinets
- It also supports automatic dehumidification to effectively protect the lamp bead during long-term use or in humid environments
Hikvision DS-D4240CO-1BAB P4 Outdoor Fixel LED Display Unit
The Hikvision DS-D4240CO-1BAB P4 Outdoor Fixed LED Display Unit is a high-brightness, weatherproof LED screen designed for outdoor digital signage, advertising, and information display in harsh environments.
Specification
| Cabinet | |
| Pixel Configuration | SMD Triad LED |
| Pixel Pitch Category | P4 |
| Pixel Pitch | 4 mm |
| Modules Component | 3 × 6 |
| Dimension (W × H × D) | 960 mm × 960 mm × 94 mm (37.80” × 37.80” × 3.70”) |
| Resolution | 240 × 240 |
| Area | 0.9216 m² |
| Weight | 32.95 kg (72.64 lb) |
| Pixel Density | 62500 dots/m² |
| Lamp Board Housing | With housing |
| Cabinet Material | Diecasting Aluminium |
| Maintenance Method | Back maintenance |
| Cabinet Flatness | 0.2 mm |
| Protection Level | IP45 |
| Key Material | |
| Lamp Encapsulation | 1921 (Copper) |
| Control System | DS-D42C04-H |
| Display | |
| White Balance Brightness | 4500 cd/m² |
| Color Temperature | 12000K to 14000K adjustable |
| Viewing Angle | Horizontal 160°, vertical 140° |
| Contrast Ratio | ≥ 5000:1 |
| Color Uniformity | ≤ ± 0.003Cx, Cy |
| Brightness Uniformity | ≥ 97% |
| Processing Performance | |
| Driving Method | Constant current driving |
| Frame Frequency | 50/60 Hz |
| Refresh Rate | Up to 3840 Hz |
| Grey Level | Up to 14 bit |
| Power | |
| Power Supply | 110 to 220 VAC ± 15% |
| Max. Consumption | ≤ 508 W/m² |
| Average Consumption | ≤ 169 W/m² |
| Working Environment | |
| Working Temperature | -20 °C to 50 °C (-4 °F to 120 °F) |
| Working Humidity | 10% RH to 90% RH (No condensation) |
| Storage Humidity | 10% RH to 90% RH (No condensation) |
| Storage Temperature | -20 °C to 60 °C (-4 °F to 140 °F) |
| General | |
| Gross Weight | 150 kg/4 in 1 (330.69 lb) |
| Package Dimension (W × H × D) | 1108 mm × 703 mm × 1194 mm (43.62” × 27.68” × 47.01”) |
| Lifespan | Lamp 100,000 hours |
Typical Applications
-
Outdoor Advertising: Billboards, shopping malls, stadiums.
-
Public Information: Traffic guidance, airport/train station displays.
-
Event Screens: Concerts, sports events, live broadcasts.
