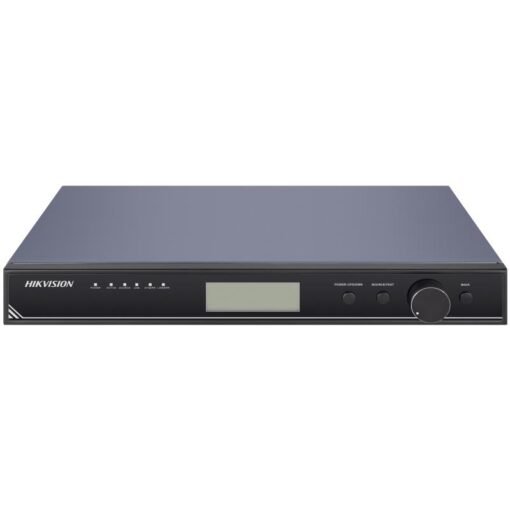

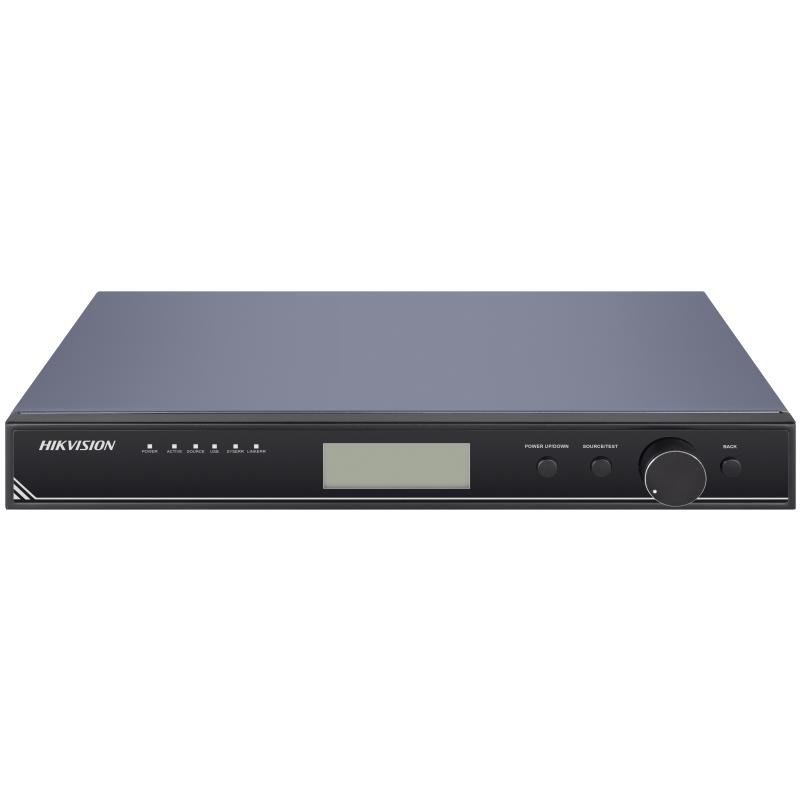

Hikvision DS-D42C20-H LED Controller

Name: Hikvision DS-D42C20-H LED Controller
SKU: HB41066
Availability: InStock

Original price was: KSh 242,000.00.Current price is: KSh 240,000.00. excl. VAT

DS-D42C20-H LED Display Controller, used with LED full-color display screens, supports seamless splicing of the screens in any dimension. It is applicable to meeting rooms, studios, stadiums, airports, stations, banks, advertisements, family cinemas, etc.

Visit our store and enjoy:

Genuine, brand new, sealed stock
Price-match against authorized dealers
Installation & configuration services available
Expert advice on compatibility with your network

SKU: HB41066 Category: Hikvision Store Kenya Brand: Hikvision

Description
Reviews (0)

Hikvision DS-D42C20-H LED Controller

The Hikvision DS-D42C20-H is an LED controller designed for managing and controlling LED lighting in security and surveillance environments, particularly for Hikvision’s LED illuminators (IR or white light).

Features

20-ch gigabit Ethernet output ports, up to 4096 × 2160@60 Hz signal source access. 1-ch HDMI 2.0 output, and 1-ch HDMI 1.4 live view output.
2-ch HDMI 2.0 input interfaces: Supports 4096 × 2160@60 Hz, up to 7680 × 1080@60 Hz.
Automatic signal source search: Enables automatic signal source search by default.
3D synchronized signal input and output interface: The sending card can process 3D signals, and the single card supports 3840 × 1080p@120 Hz input and output.
Audio device access: The sending card, with audio input and output interfaces, supports audio device access.
Light sensor expansion: The sending card has a light sensor expansion interface, and the light sensor adjustment function can be enabled without adding a multi-functional card.
Dual-mode remote control expansion interfaces: Equipped with infrared and USB RF Wi-Fi expansion interfaces. The dual-mode supports remote control.
Large load capability: 10 MP.
Cloud upgrade: The system program supports remote upgrade on cloud.
Supports remote control, with the screen displaying remote control UI menu.
Scene management: You can customize and switch scenes out of various options.
Multi-controller auto splicing and cascade display for synchronization.
High refresh rate of 3840 Hz, nanosecond response time, and smooth video images.

Specification

Model		DS-D42C20-H
ProductModel	Product Model	DS-D42C20-H
Product Type	Product Type	LED Control Card
Interface	Video & Audio Input	2 × HDMI
	Video & Audio Output	1 × HDMI output, 20 × network interface, 1 × HDMI live view interface.
	Control Interface	RJ45
Processing Performance	Max. Load Capacity	10 MP
	Brightness Control	1 to 100 levels adjustable (gradual white balance)
	Frame Frequency	60 Hz
	Grey Level	16 bits
	Max. Resolution of BarDisplay	24,000 × 256 pixels
	Display Color	2^16 × 2^16 × 2^16
	Processing Depth	8/10 bits
Power	Max. Consumption	33 W
	Average Consumption	30 W
	Input Voltage	100 to 240 VAC
Working Environment	Working Temperature	0 °C to 40 °C (32 °F to 104 °F)
	Working Humidity	10% to 80%
	Storage Temperature	-10 °C to 60 °C (14 °F to 140 °F)
	Storage Humidity	10% to 80%
General	Product Dimensions(W × H × D)	442 mm × 249.5 mm × 57 mm (17.4″ × 9.8″ × 2.2″)
	Net Weight	4.25 kg (9.4 lb)
	Package Dimensions(W × H × D)	576 mm × 428 mm × 121 mm (22.6″ × 16.7″ × 4.6″)
	Gross Weight	5.36 kg (11.8 lb)
	Packing List	Network cable (1.5 m) × 1, hanger accessory box × 1, desiccant × 1, VC Power Cord(1.2 m) × 1, multilingual quick start guide × 1
