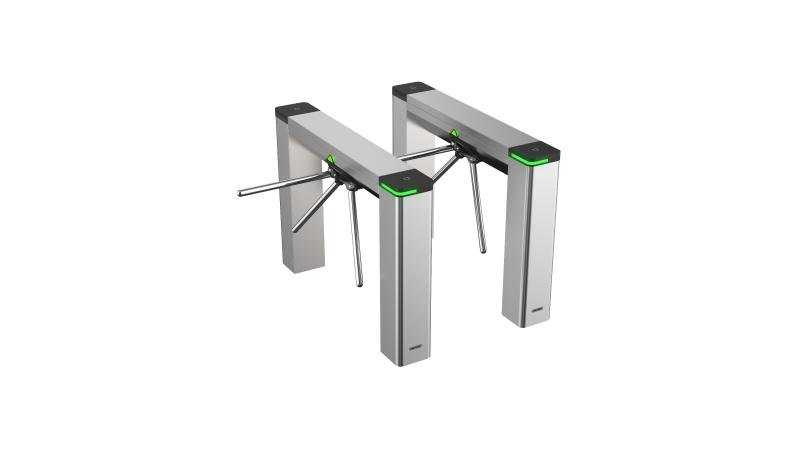

Hikvision DS-K3G501X-R/M Pro Tripod Turnstile

Original price was: KSh 242,000.00.Current price is: KSh 240,000.00. excl. VAT

Barrier open/closed, free accessing, forbidden mode are selectable.
Bidirectional (entering/exiting) lane
LED indicates the entrance/exit and passing status.
Fire alarm passing: when the fire alarm is triggered, the barrier will be dropped automatically for emergency evacuation.
Valid passing duration settings: system will cancel the passing permission if a person does not pass through the lane within the valid passing duration.
Easy integration of any third-party software management system via ISAPI procotol.
With key buttons to configure turnstile’s functions and parameters offline.

SKU: HB41082 Categories: Hikvision Access Control, Hikvision Store Kenya Brand: Hikvision

Description
Reviews (0)

Hikvision DS-K3G501X-R/M Pro Tripod Turnstile

The Hikvision DS-K3G501X-R/M Pro Tripod Turnstile offers advanced access control for high-security environments that require robust pedestrian management. The DS-K3G501X series tripod barrier detects unauthorized entrance or exit. By adopting the turnstile integrated with the access control system. It is widely used in attractions, stadiums, construction sites, residences, etc

Specification
System
Motor	NA
MCBF	≥ 3 million times
Network
Communication protocol	ISAPI
Wired network	10/100 Mbps self-adaptive Ethernet
Interface
Network interface	1
Lock control	2
Exit button	2
Alarm output	2
TAMPER	NA
RS-485	4
RS-232	2
Wiegand	NA
Fire alarm input	1
Case input	2
Hardware
Access controller	Supplied
Power supply for facerecognition module	Supplied for“Pg”type
Keyfob	Not suppliedNeed order separately
Capacity
Card capacity	500,000
Event capacity	500,000
Authentication
Card type	EM/M1/Desfire/Felica
Function
Configuration via Web browser	Support
Configuration via mobile Webbrowser	Support
QR code recognition	Optional
Audio prompt	Support
Keypad configuration	Support
General
Throughput	More than 35 persons per minuteThe person passing rate and passing method affect the actual throughput.
Lane width	550 mm
Barrier material	SUS304 stainless steel pipe
Pedestal material	SUS304 stainless steel thickness 1.5 mm(0.06″)
Power	Switching power supply: 100 to 240 VAC; 50 to 60 HzPower adapter: 100 to 240 VAC; 50 to 60 Hz

Power consumption	45 W (stand by)
Working temperature	Switching power supply: -20 °C to 65 °C (-4 °F to 149 °F)Power adapter: -10 °C to 45 °C (14 °F to 113 °F)
Working humidity	0% to 95% (No condensing)
Protective level	IPX4
Dimensions	Without package: 232 mm × 960 mm × 1208 mm (9.1″ × 37.8″ × 47.6″)With package: 390 mm × 1185 mm × 1320 mm (15.4″ × 46.7″ × 52.0″)
Weight	Without package: 45 kg (99.2 lb)With package: 69 kg (152.1 lb)
Approval	CE/CE-LVD/CB/RoHS/REACH/WEEE
Configuration
Lane width	550
Pedestal length	1210 mm
Module selection	YES
Pedestal width	200 mm
Wall distance	10mm
Base	YES
Barrier material	Stainless steel pipe
Application environment	Indoor and outdoor
Authentication mode	Card, Face, Fingerprint, QR code
Card type	EM, M1, Desfire
Recommended width	550
Base model	DS-K3G501-BASE
Side pedestal	YES
Side pedestal type	Empty (230 mm)/fence (130 mm)
Product type	Tripod Turnstile
Remote controller type	433 Mhz, 868 Mhz
Movement Protrusion Width	29 mm
