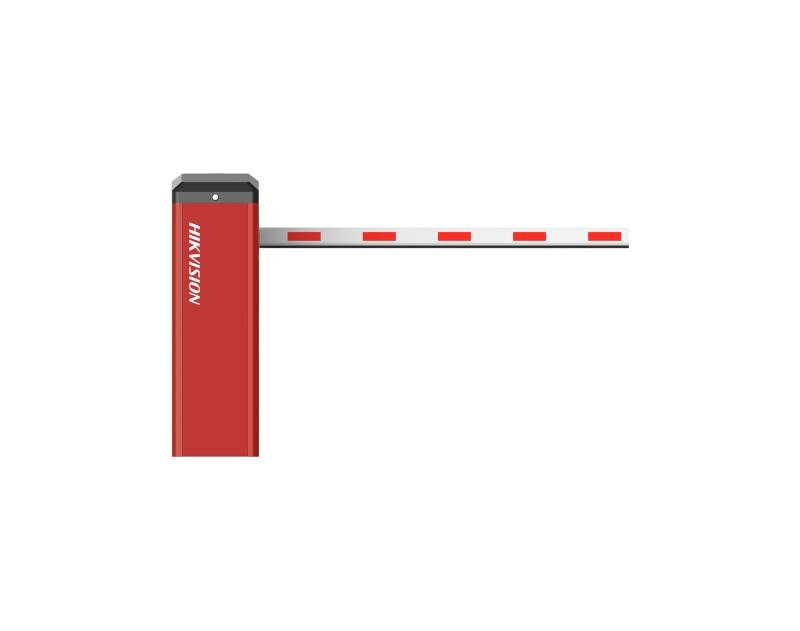

Hikvision DS-TMG520-M Barrier gates with straight boom pole
Original price was: KSh 412,000.00.KSh 410,000.00Current price is: KSh 410,000.00. excl. VAT
DS-TMG52X series barrier gate is applicable to entrance and exit management. It is widely used in road toll station, parking lot, community, enterprise entrance and exit, etc. to manage the entering and exiting of vehicles and record vehicle passing times. It can be controlled automatically via parking lot management system, or via handle, remote controller, buttons, etc.
Hikvision DS-TMG520-M Barrier gates with straight boom pole
The Hikvision DS-TMG520-M is a high-performance automatic barrier gate designed for vehicle access control in parking lots, toll stations, and secured entry points. It features a straight boom pole for reliable operation and integrates seamlessly with Hikvision’s security ecosystem.
Features
- DC frequency conversion. The rising and falling speeds can be adjusted independently. The boom pole can rise in high speed to let the vehicle pass quickly.
- The boom pole can fall in low speed to avoid hitting vehicle and pedestrian.
- High protection level. The chassis is produced with 2 mm cold rolled steel sheets in numerically-controlled precision. The surface is coated with plastic powder which is anti-UV, antistatic, non-peeling, and non-fading. The dustproof and waterproof level conforms to IP54.
- Multiple control modes. Rising priority. The boom pole can be controlled via relay, remote controller, and software command.
- Multiple anti-hitting modes via induction, IR, pressure wave, etc.
- The boom pole direction is adjustable from left to right, or from right to left.
- Anti-condensation. The electric motor is in low consumption even when the barrier gate is not in working status, which will keep the motor in normal temperature. So even in cold weather, the lube will not be frozen to guarantee the normal running of barrier gate.
- Auto lock. Even when the power is cut off, you can use tool to keep the barrier gate working.
Specification |
|
| Barrier Housing | |
| Barrier Housing Material | SGCC |
| Barrier Housing Thickness | 2.0 mm |
| Barrier Housing Door Thickness | 1.5 mm |
| Barrier Housing Color | Orange |
| Barrier Housing Door Color | Orange |
| Boom Pole Installation Height | 880 mm |
| Body Indicators | without indicator |
Barrier Gate General |
|
| Matched Boom Pole Type | Round boom pole: 1 to 4 manti-collision Octagonal boom pole: 1 to 6 m
Octagonal telescopic boom pole: 4 to 6 m Boom pole ≥ 5 m: with spindle rod |
|
Rising/Falling Speed |
DS-TMG520-H(3m):Raising: 0.9S(Default) Adjustable 0.9S, 1.2S, 2S Falling: 3S(Default) Adjustable 1.5S, 2S, 3S
DS-TMG520-M(4m): Raising: 1.5S(Default) Adjustable 1.5S, 2S, 2.5S Falling: 3.5S(Default) Adjustable 2.5S, 3S, 3.5S
DS-TMG520-L(6m): Raising: 4S(Default) Adjustable 4S, 5S, 6S Falling: 6S(Default) Adjustable 4S, 5S, 6S
DS-TMG520-M(4m telescopic pole): Raising: 2S(Default) Adjustable 2S, 2.5S Falling: 3.5S(Default) Adjustable 2.5S, 3S, 3.5S
DS-TMG520-L(5m telescopic pole): Raising: 4S(Default) Adjustable 4S, 5S, 6S Falling: 6S(Default) Adjustable 4S, 5S, 6S
DS-TMG520-L(6m telescopic pole): Raising: 4S(Default) Adjustable 4S, 5S, 6S Falling: 6S(Default) Adjustable 4S, 5S, 6S |
| Boom Pole Direction | right by default, direction switchable |
| Boom Pole Falling Delay | 10 s by default (configurable), min. 10 s (every 10 s followed a gap) |
| Number of Cycles | 5000000 |
| Motor Type | DC brushless motor |
| Working Voltage | 220 VAC ± 15% |
| Remote Controller Frequency | 433 MHz |
| Current | 1.5 A |
| Consumption | 300 W |
| Temperature and Humidity | -30 °C to 70 °C (-22 °F to 158 °F) |
| Rising Boom Pole for Poweroff | Optional, not supported by default |
Package |
|
| Barrier Housing Dimensions (L ×W × H) | 1248 × 486 × 480 mm (49.1 × 19.1 × 18.9 inch) |
| Body Weight | 59.3 ± 5 kg (130.7 ± 11.0 lb.) |
| Body Dimensions (with Package,Without Boom Pole) (L × W × H) | 1266 × 504 × 626 mm (49.84 × 19.84 × 24.65 inch) |
| Barrier Gate | |
| Duty Cycle | 100% |
Interface |
|
| Rising to Limit | 1 group |
| Falling to Limit | 1 group |
| Open | 1 group |
| Close | 1 group |
| Stop | 1 group |
| IR/Inductive Loop/Radar | 1 group |
| RS-485 | 1 group |
| Traffic Signal Light | 1 group, external power supply required, max. 220 VAC supported |
| Network | 1 group (reserved) |
Approval |
|
|
RF |
CE-REDEN 300220-1 V3.1.1
EN 300220-2 V3.1.1 EN 301489-1 V2.2.3 EN 301489-3 V2.1.1 EN IEC 62311: 2020 |
|
EMC |
CE-EMC：EN 55032: 2015 + A11: 2020 + A1: 2020,
EN IEC 61000-3-2: 2019 + A1: 2021, EN 61000-3-3: 2013 + A1: 2019 + A2: 2021, EN 50130-4: 2011 + A1: 2014 |
|
Security |
CE-LVD:EN 62368-1: 2014 + A11: 2017 CB:
IEC 62368-1: 2014 IEC 62368-1: 2018 |
| Environment | ROHS |
| Protection | IP54 |
Boom Pole |
|
| Boom Pole Type | Octagonal Straight Pole |
| Boom Pole Material | AL6061 |
| Boom Pole Color | White background with red bar |
|
Boom Pole Dimensions |
2 m octagonal boom pole: 98 × 45 × 2000 mm (3.86 × 1.77 × 78.74 inch)3 m octagonal boom pole: 98 × 45 × 3000 mm (3.86 × 1.77 × 118.11 inch)
4 m octagonal boom pole: 98 × 45 × 4000 mm (3.86 × 1.77 × 157.48 inch) 5 m octagonal boom pole: 119 × 55 × 5000 mm (4.69 × 2.17 × 196.85 inch) 6 m octagonal boom pole: 119 × 55 × 6000 mm (4.69 × 2.17 × 236.22 inch) 3 m boom pole with LED light bar: 95 × 49 × 3013 mm (3.74 × 1.93 × 118.62 inch) 4 m boom pole with LED light bar: 95 × 49 × 4013 mm (3.74 × 1.93 × 157.99 inch) 4 m octagonal telescopic boom pole: 110 × 44 × 2970 mm (4.33 × 1.73 × 116.93 inch) 5 m octagonal telescopic boom pole: 110 × 44 × 3470 mm (4.33 × 1.73 × 136.61 inch) 6 m octagonal telescopic boom pole: 110 × 44 × 6000 mm (4.33 × 1.73 × 236.22 inch) 2 m anti-collision round boom pole: 80 × 80 × 2000 mm (3.15 × 3.15 × 78.74 inch) 3 m anti-collision round boom pole: 80 × 80 × 3000 mm (3.15 × 3.15 × 118.11 inch) 4 m anti-collision round boom pole: 80 × 80 × 4000 mm (3.15 × 3.15 × 157.48 inch) |
|
Boom Pole Weight |
2 m octagonal boom pole: 2.5 ± 0.3 kg (5.51 ± 0.66 lb.)3 m octagonal boom pole: 2.8 ± 0.3 kg (6.17 ± 0.66 lb.)
4 m octagonal boom pole: 3.45 ± 0.3 kg (7.60 ± 0.66 lb.) 5 m octagonal boom pole: 5.9 ± 0.3 kg (13.00 ± 0.66 lb.) 6 m octagonal boom pole: 6.8 ± 0.3 kg (15.21 ± 0.66 lb.) 3 m boom pole with LED light bar: 3.4 ± 0.3 kg (7.50 ± 0.66 lb.) 4 m boom pole with LED light bar: 4.4 ± 0.3 kg (9.70 ± 0.66 lb.) 4 m octagonal telescopic boom pole: 4.42 ± 0.3 kg (9.74 ± 0.66 lb.) 5 m octagonal telescopic boom pole: 4.85 ± 0.3 kg (10.69 ± 0.66 lb.) 6 m octagonal telescopic boom pole: 5.65 ± 0.3 kg (12.46 ± 0.66 lb.) 2 m anti-collision round boom pole: 2.5 ± 0.3 kg (5.51 ± 0.66 lb.) 3 m anti-collision round boom pole: 3.5 ± 0.3 kg (7.71 ± 0.66 lb.) 4 m anti-collision round boom pole: 4.5 ± 0.3 kg (9.92 ± 0.66 lb.) |
|
Boom Pole Dimensions (with Package) |
2 m octagonal boom pole: 115 × 60 × 2020 mm (4.53 × 2.36 × 79.53 inch)3 m octagonal boom pole: 115 × 60 × 3020 mm (4.53 × 2.36 × 118.90 inch)
4 m octagonal boom pole: 115 × 60 × 4020 mm (4.53 × 2.36 × 158.27 inch) 5 m octagonal boom pole: 140 × 65 × 5030 mm (5.51 × 2.56 × 198.03 inch) 6 m octagonal boom pole: 140 × 65 × 6030 mm (5.51 × 2.56 × 237.40 inch) 3 m boom pole with LED light bar: 100 × 60 × 3035 mm (3.94 × 2.36 × 120.07 inch) 4 m boom pole with LED light bar: 100 × 60 × 4035 mm (3.94 × 2.36 × 159.45 inch) 4 m octagonal telescopic boom pole: 120 × 51 × 3100 mm (4.72 × 2.01 × 122.05 inch) 5 m octagonal telescopic boom pole: 120 × 51 × 3500 mm (4.72 × 2.01 × 137.80 inch) 6 m octagonal telescopic boom pole: 120 × 51 × 4005 mm (4.72 × 2.01 × 157.68 inch) 2 m anti-collision round boom pole: 90 × 90 × 2030 mm (3.54 × 3.54 × 79.92 inch) 3 m anti-collision round boom pole: 90 × 90 × 3030 mm (3.54 × 3.54 × 119.29 inch) 4 m anti-collision round boom pole: 90 × 90 × 4030 mm (3.54 × 3.54 × 158.66 inch) |
