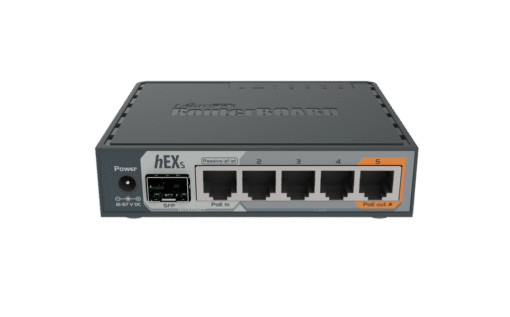

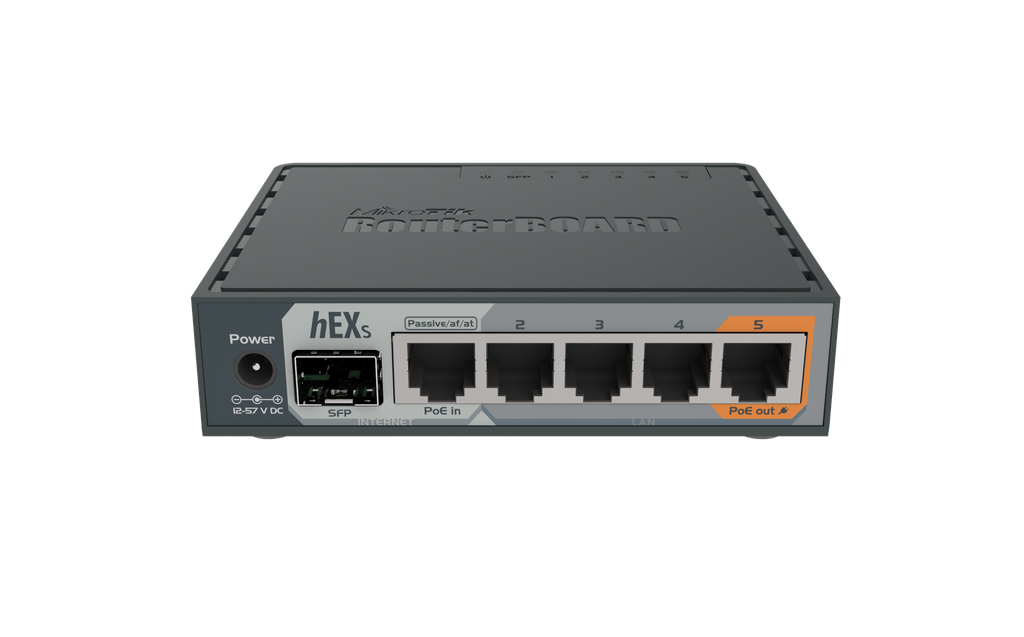

Mikrotik E60iUGS hEX S 5 port Gigabit Ethernet router
The Mikrotik E60iUGS hEX S is a versatile wired router perfect for modern homes, offices, and media setups. It features 5× Gigabit Ethernet ports with PoE-in and PoE-out, a 2.5G SFP cage, and USB 3.0 for local file sharing.
Powered by a dual-core ARM CPU and 512 MB RAM, this router handles advanced routing, bonding, VLANs, and more. With RouterOS v7 and flexible port assignment, hEX S offers high performance and unmatched value in a compact, wall-mountable design.
Key Features:
- 5× Gigabit Ethernet Ports: Port #1 supports PoE-in; port #5 supports PoE-out.
- 2.5G SFP Cage: Perfect for NAS, fiber plans, and media servers.
- USB 3.0 Port: Connect drives for easy file sharing and backups.
- Dual-Core ARM CPU (950 MHz): Smooth performance for advanced routing.
- 512 MB RAM + 128 MB NAND Storage: Run complex configurations with ease.
- RouterOS v7: Advanced features with no hidden costs—routing, bonding, VLANs, and more.
- Wall-Mountable & Compact Design: Clean installs at desks, cabinets, or network closets.
- Smart PoE Output: Power another device like a camera or access point.
- Flexible Power Options: Compatible with PoE, off-grid setups, and standard DC jack.
Specifications
Details | |
---|---|
Product code | E60iUGS |
Architecture | ARM |
CPU | EN7562CT |
CPU core count | 2 |
CPU nominal frequency | 950 MHz |
Switch chip model | EN7562CT |
RouterOS license | 4 |
Operating System | RouterOS v7 |
Size of RAM | 512 MB |
Storage size | 128 MB |
Storage type | NAND |
MTBF | Approximately 100’000 hours at 25C |
Tested ambient temperature | -40°C to 70°C |
IPsec hardware acceleration | Yes |
Powering
Details | |
---|---|
Number of DC inputs | 2 (DC jack, PoE-IN) |
DC jack input Voltage | 12-57 V |
Max power consumption | 23 W |
Max power consumption without attachments | 5 W |
PoE in | 802.3af/at |
Cooling type | Passive |
PoE in input Voltage | 18-57 V |
PoE-out
Details | |
---|---|
PoE-out ports | Ether5 |
PoE out | Passive PoE up to 57V |
Max out per port output (input 18-30 V) | 0.5 A |
Max out per port output (input 30-57 V) | 0.5 A |
Ethernet
Details | |
---|---|
10/100/1000 Ethernet ports | 5 |
Number of 1G Ethernet ports with PoE-out | 1 |
Fiber
Details | |
---|---|
SFP ports | 1 (2.5G supported) |
Peripherals
Details | |
---|---|
Number of USB ports | 1 |
USB Power Reset | Yes |
USB slot type | USB 3.0 type A |
Max USB current (A) | 1 |
Other
Details | |
---|---|
CPU temperature monitor | Yes |
PCB temperature monitor | Yes |
Voltage Monitor | Yes |
Mode button | Yes |
Certification & Approvals
Details | |
---|---|
Certification | CE, EAC, ROHS |
IP | 20 |
