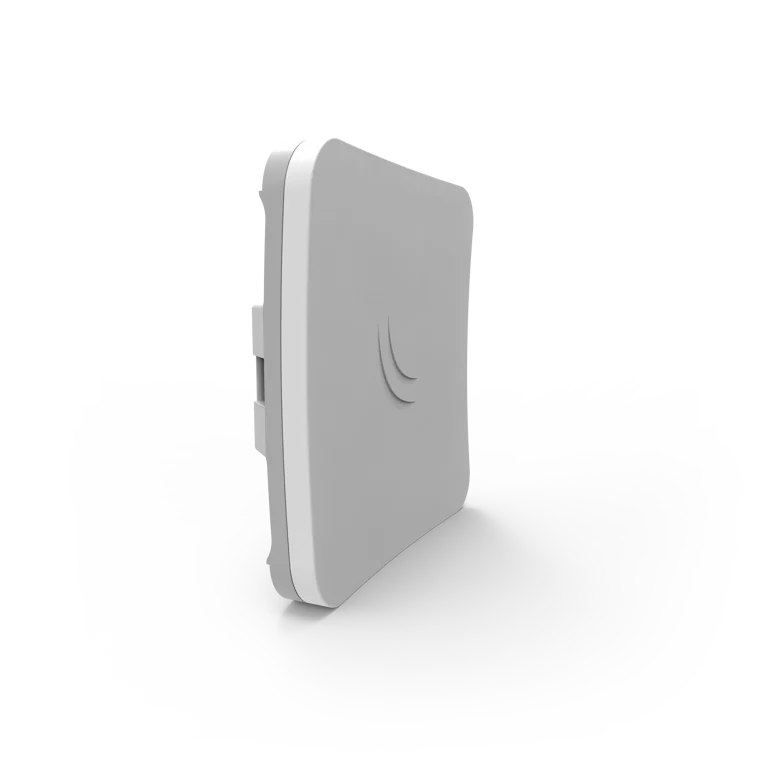

Mikrotik SXT SQ 5AC RBSXTSQG-5ACD 5GHz Integrated CPE
The MikroTik RBSXTsqG-5acD is a compact and lightweight outdoor 5GHz 802.11ac wireless device with an integrated 16dBi antenna, perfect for point-to-point links or as a CPE unit. The device includes one 10/100/1000 Mbit Ethernet port to fully utilise speeds that 802.11ac protocol provides.
The SXTsq 5 ac keeps the same 16 dBi antenna as the previous SXT 5 ac model, but features an improved antenna design. The new design also reduces the physical size significantly, making the SXTsq twice as thin.
The weatherproof enclosure includes slots that allow direct attachment of a hose clamp mount at three different mounting points. It also supports mounting on horizontal railings. There is also an easily accessible grounding connection to protect it against lightning.
Specification
| Product code | RBSXTsqG-5acD (International), RBSXTsqG-5acD-US (USA) | |
| CPU | IPQ-4018, 4 cores, nominal frequency 716 MHz | |
| Size of RAM | 256 MB | |
| Storage | 16 MB Flash | |
| 10/100/1000 Ethernet ports | 1 | |
| Wireless bands | 5 GHz radio | |
| Wireless regulations | Specific frequency range may be limited by country regulations | |
| Operating frequency | International | 5150 – 5875 MHz |
| USA | 5170 – 5250 MHz5725 – 5835 MHz | |
| Protocols | 802.11a/n/ac | |
| Chains | 2 | |
| Antenna gain | 16 dBi | |
| Antenna beam width | 23° | |
| Wireless chip model | IPQ-4018 | |
| PoE in | Yes | |
| Supported input voltage | 10 V – 30 V, passive PoE | |
| Ingress protection | IP55 | |
| Dimensions | 129 x 129 x 34 mm; package: 255 x 180 x 45 mm | |
| Weight | Unit: 295 g; package: 492 g | |
| Operating temperature | -40 to 70° C | |
| License level | 3 | |
| Operating System | RouterOS | |
| Max Power consumption | 7 W | |
