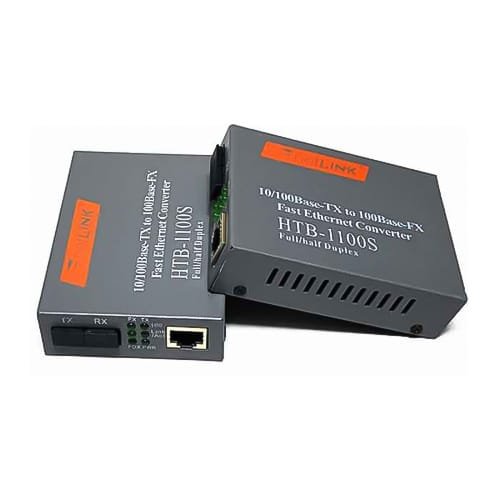

NetLINK HTB-1100S Single-mode Fiber Ethernet Media Converter

The NetLINK HTB-1100S Single-mode Fiber Ethernet Media Converter is a Fast Ethernet media converter designed to extend a 10/100 Mbps Ethernet connection over a single-mode fiber optic cable. It converts electrical Ethernet signals (RJ45) to optical signals (SC fiber) and vice versa, making it ideal for long-distance network links.

Feature

• Auto negotiation function allows UTP port to select the transmission mode of 10/100M and Full Duplex or Half Duplex.
• UTP port supports MDI/MDI-X auto crossover.
• Multiple optical interface to be chosen: SC,ST or FC, singlemode/multimode
• Supporting 1552 Byte packet
• Internal circuit of prevented thunder could greatly reduce damage of the converter caused by thunderbolt induction.
• Design of internal or external power supply for selection by users

NetLINK HTB-1100S Specification

• Operating standards: IEEE802.3u, 10/100Base-TX and 100Base-FX
• MAC address table: 1K
• Connector:
  • UTP: RJ-45 10/100Mbps;
  • Fiber: ST/SC/FC 100Mbps
• Cable:
  • UTP: Cat. 5 UTP (the max distance up to 100m)
  • Fiber (Multimode): 50/125, 62.5/125μm(the max distance up to 2km or 5km)
  • Fiber (Singlemode): 8.3/125, 8.7/125, 9/125, 10/125μm(the max distance up to 20 -120km)
• Flow Control
  • Full Duplex: Supporting standard IEEE802.3x
  • Half Duplex: Backpressure
• LED: Power, FX FDX, FX Link/Act, TX 100, TX FDX, TX Link/Act.
• Power: AC 110V-240V to DC 5V; DC 48V to DC 5V.
• Ambient Temperature: 0 ℃ ~ 70 ℃
• Humidity: 5% ~ 90%
• Dimensions:
  • Internal power: 30x110x140mm
  • External power: 26x70x93mm
